Product identification

• Hidraoil Part number: GFX101397
• Brand of product: Berarma
• Part number: 02-PSP2-50-F-H-R-M
• Other numbers: 02PSP2-50-FHRM 02 PSP2 50 F H R M 02PSP250FHRM

Description

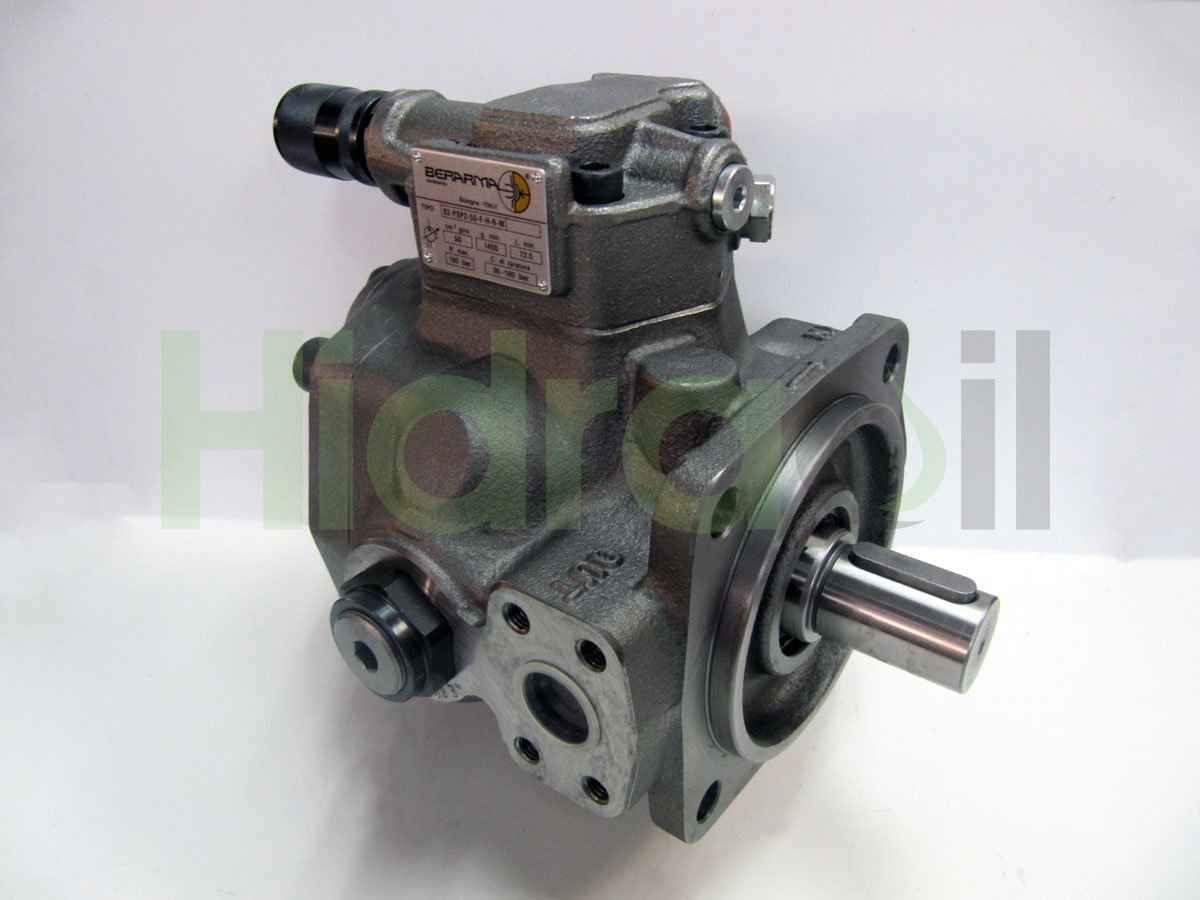

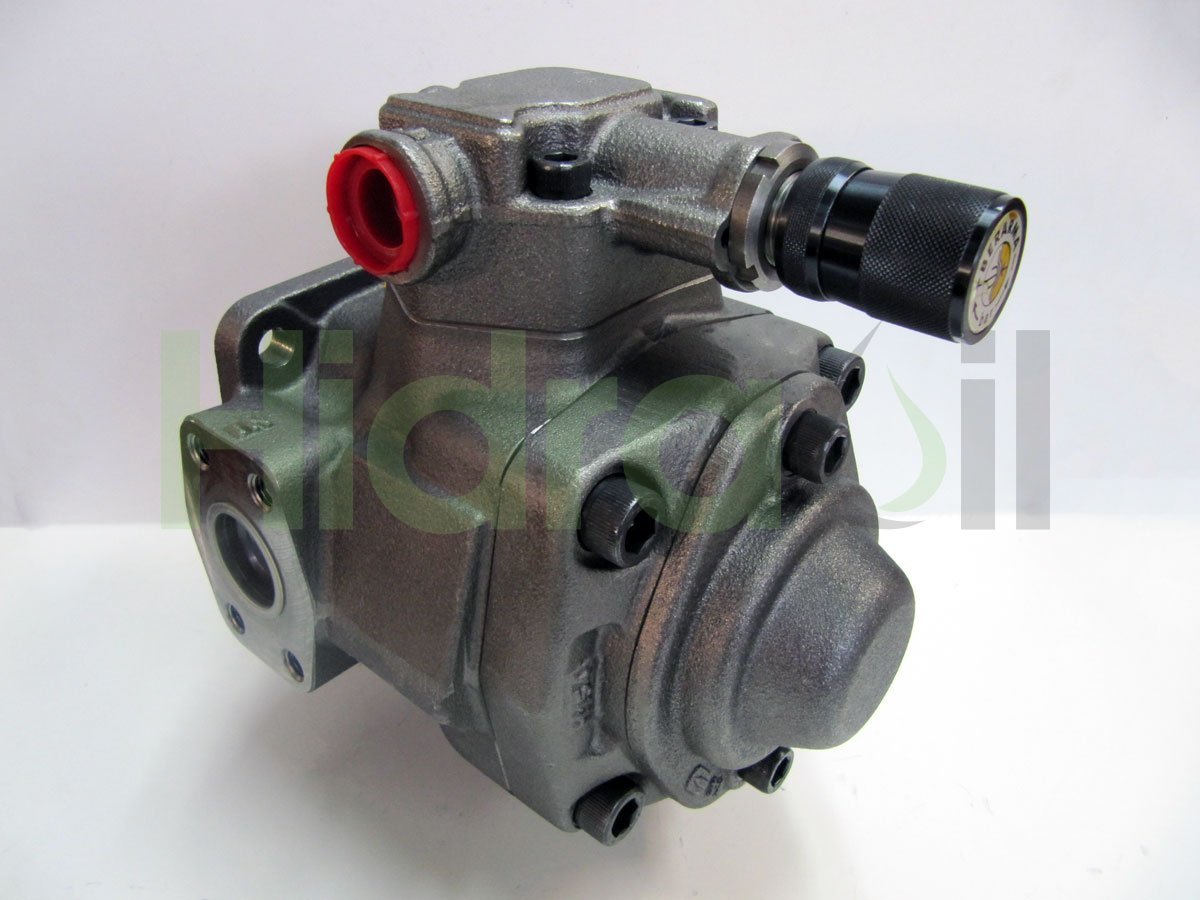

• Hydraulic variable displacement vane pump with control from presión hidráulico pilotado.
  Displacement: 50 cm3/rev.
  Flow @ 1450 rpm: 72,5 liters/minute.
  Max working Pressure: 160 bar.
  Max speed: 1800 rpm.
  Pressure setting range: From 30 up to 160 bar.
  Rotation: Clockwise rotation.
  Shaft type: Parallel diameter 32 mm.
  Flange type: ISO type with centering diameter 125 mm.
  Inlet port: Para brida SAE 1"1/2.
  Outlet port: Para brida SAE 1".
  Drain port: 3/4" GAS.
