Product identification

• Hidraoil Part number: GFX101864
• Brand of product: Char-Lynn Eaton
• Part number: 101-1667-009
• Other numbers: 101-1667-009 101-1667 -007 -008 -009 1011667 1011667007 1011667008 1011667009 motor hidráulico charlin charlyn charlynn MH0226AA24AF0200000000000AA00J

Description

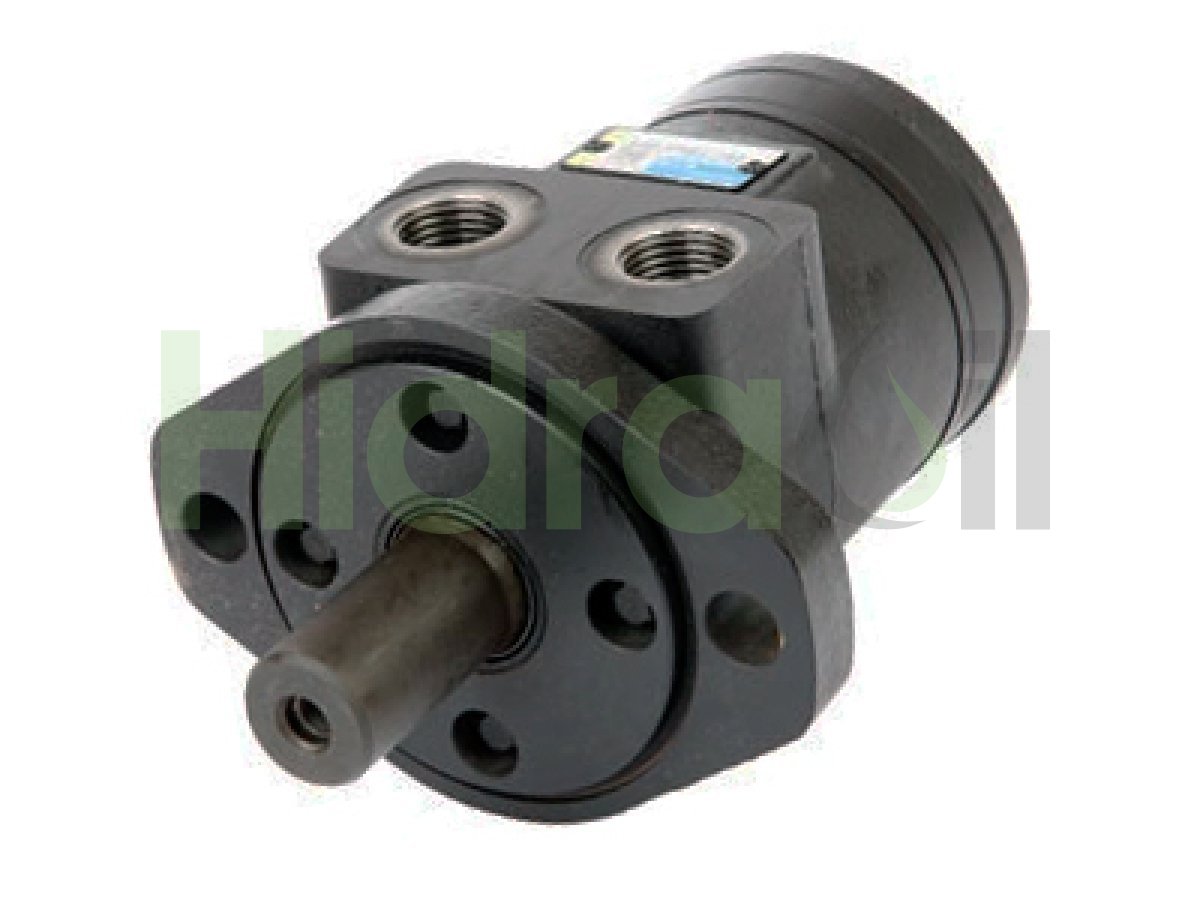

• Hydraulic orbital motor for high torque and low/medium speed applications. Robust and compact design. High starting torque and High Efficiency motors.
  Shaft type: Straight shaft 25 mm Diameter and 8 mm Width parallel key.
  Flange type: Flange with 82.5 mm centering diameter and assembly by means of 2 screws and distance between holes 106.4 mm.
  Gearwheel set case width (L1): - mm.
  Displacement: 370 cm3/rev.
  Side Ports: G1/2 Threaded Ports (1/2" BSPP)
  Drain port: Roscada 1/4" GAS.
  Max speed: - rpm (intermittent operation: - rpm).
  Max. Torque: - Nm (intermittent operation: - Nm).
  Max. Output Power: - kW (intermittent operation: - kW).
  Max. Pressure Drop: - bar (intermittent operation: - bar; peak load:- bar).
  Max oil flow: - liters/minute (intermittent operation: - liters/minute).
