Product identification

• Hidraoil Part number: GFX100246
• Brand of product: Char-Lynn Eaton
• Part number: 104-1389-006
• Other numbers: 104-1389-004 104-1389-005 motor hidráulico charlin charlyn charlynn

Description

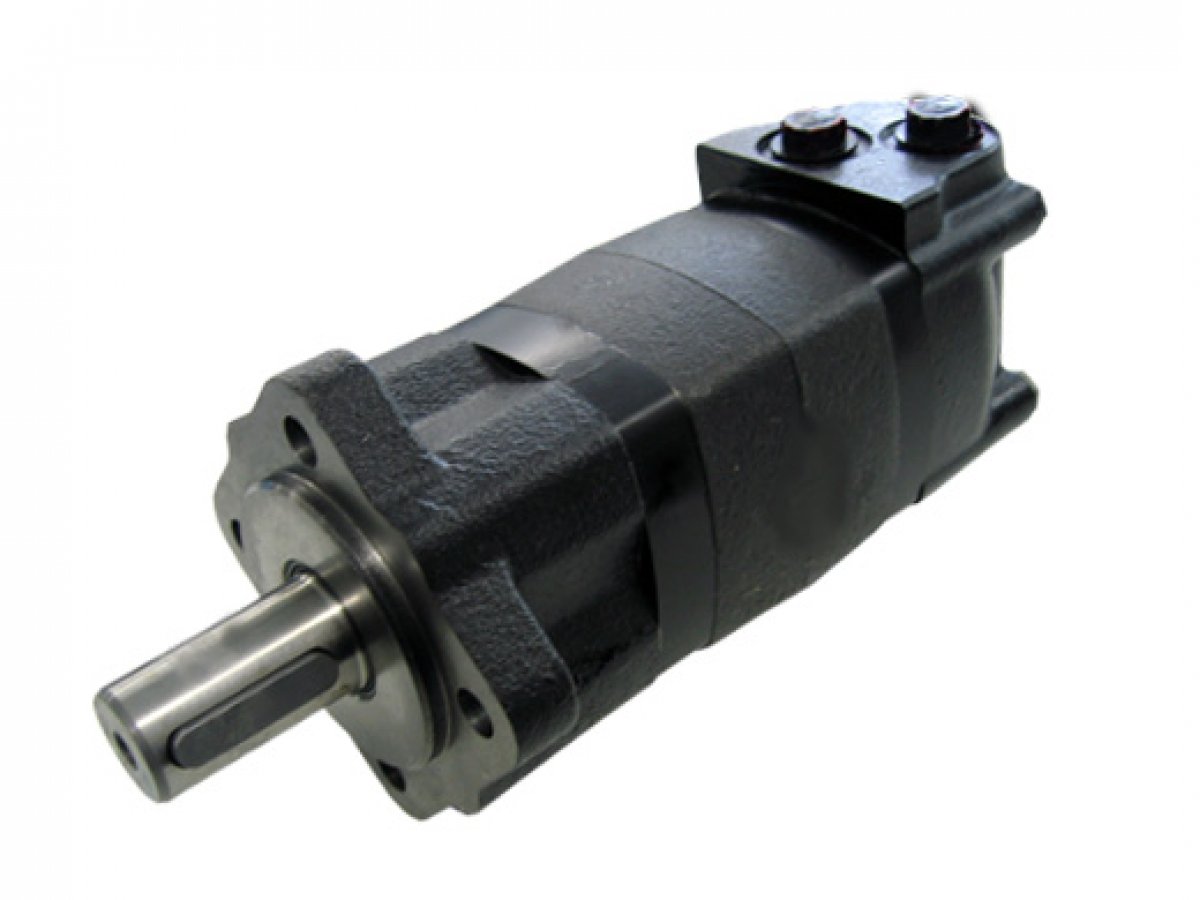

• Hydraulic orbital motor for high torque and low/medium speed applications. Robust and compact design. High starting torque and High Efficiency motors.
  Shaft type: Straight shaft 32 mm Diameter and parallel key Width 10 mmm
  Flange type: Estándar from 4 taladros con centraje from diámetro 82,5 mm y distancia from 106,4 mm entre centros from taladros en diagonal
  Displacement: 245 cm3/rev
  Side Ports: Threaded 1/2" GAS
  Drain Port: G1/4 Threaded Port (1/4" BSPP)
  Max speed: 308 rpm (intermittent operation: 462 rpm)
  Max. Torque: 660 Nm (intermittent operation: 820 Nm)
  Max. Pressure Drop: 205 bar (intermittent operation: 260 bar; peak load:310 bar)
  Max oil flow: 75 liters/minute (intermittent operation: 115 liters/minute)
