Product identification

• Hidraoil Part number: GFX101580
• Brand of product: Char-Lynn Eaton
• Part number: 104-1546-006
• Other numbers: 104-1546-004 104-1546-005 1041546004 1041546005 1041546006 104 1546 006 motor hidráulico charlin charlyn charlynn

Description

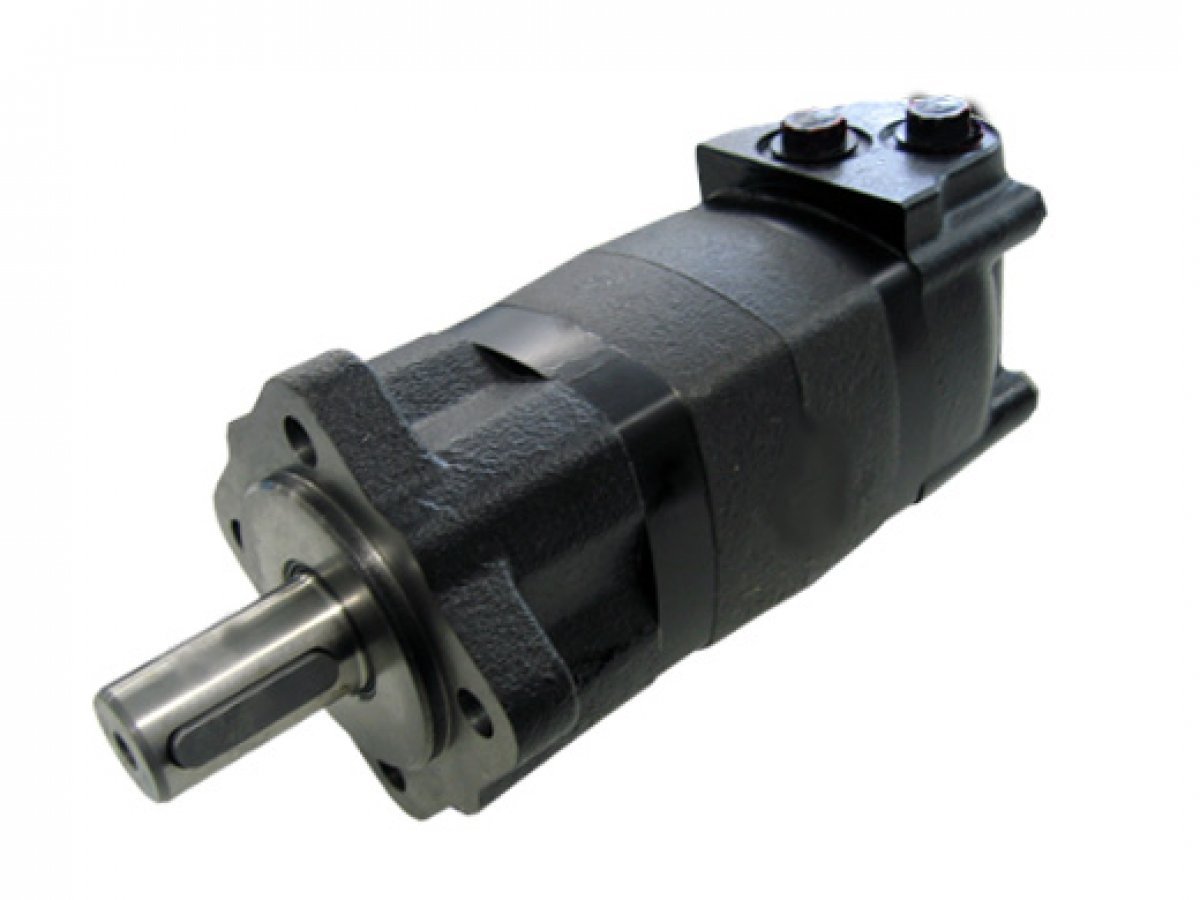

• Hydraulic orbital motor for high torque and low/medium speed applications. Robust and compact design. High starting torque and High Efficiency motors.
  Shaft type: Straight shaft Diameter 32 mm with 10 mm parallel key width.
  Flange type: Estándar from 4 taladros con centraje from diámetro 82,5 mm y distancia from 106,4 mm entre centros from taladros en diagonal.
  Displacement: 489 cm3/rev.
  Side Ports: Threaded 1/2" GAS.
  Drain Port: G1/4 Threaded Port (1/4" BSPP).
  Max speed: 153 rpm (intermittent operation: 230 rpm)
  Max. Torque: 845 Nm (intermittent operation: 930 Nm)
  Max. Pressure Drop: 120 bar (intermittent operation: 140 bar; peak load:170 bar)
  Max oil flow: 75 liters/minute (intermittent operation: 115 liters/minute)
