Product identification

• Hidraoil Part number: GFX102115
• Brand of product: Danfoss White
• Part number: 11185771 OMP X 50
• Other numbers: OMPX50 OMPX 50

Description

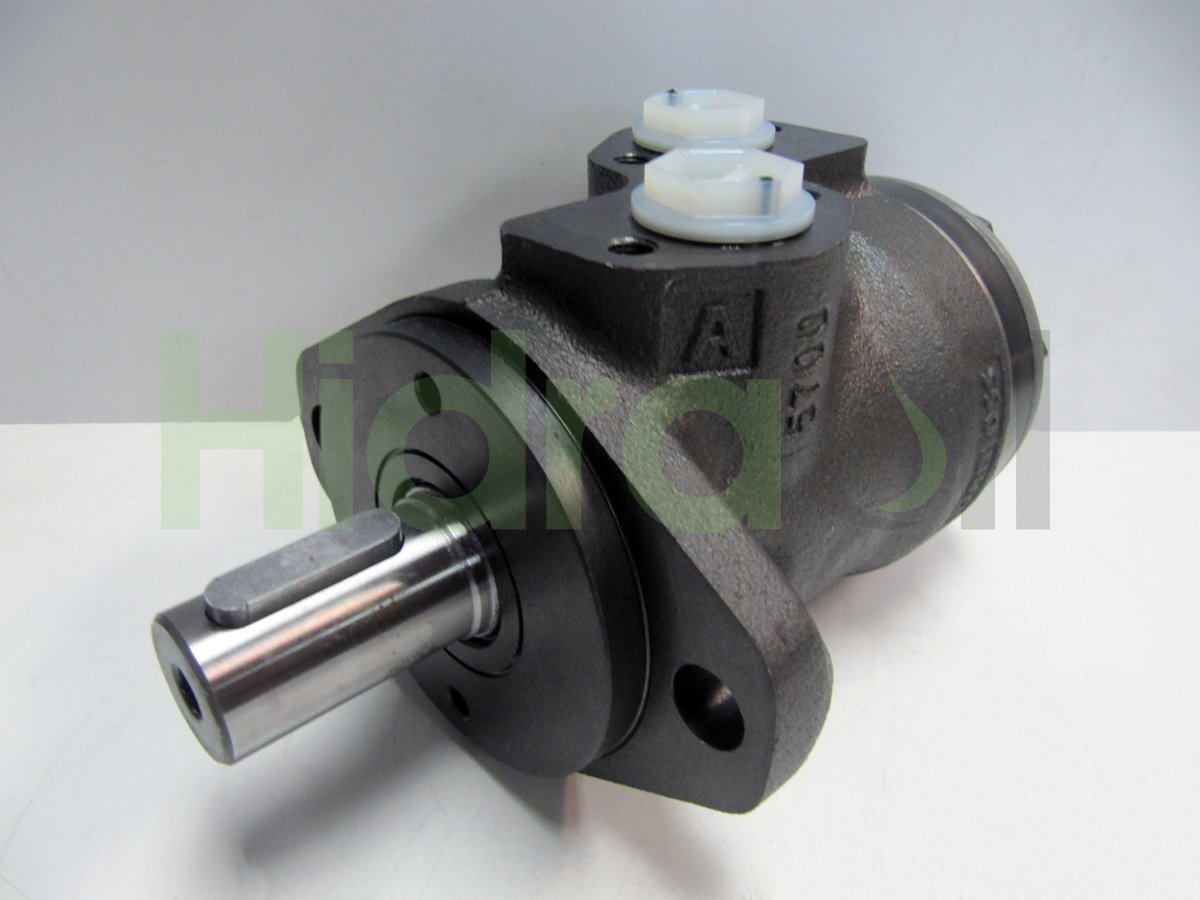

• Hydraulic orbital motor for high torque and low/medium speed applications.

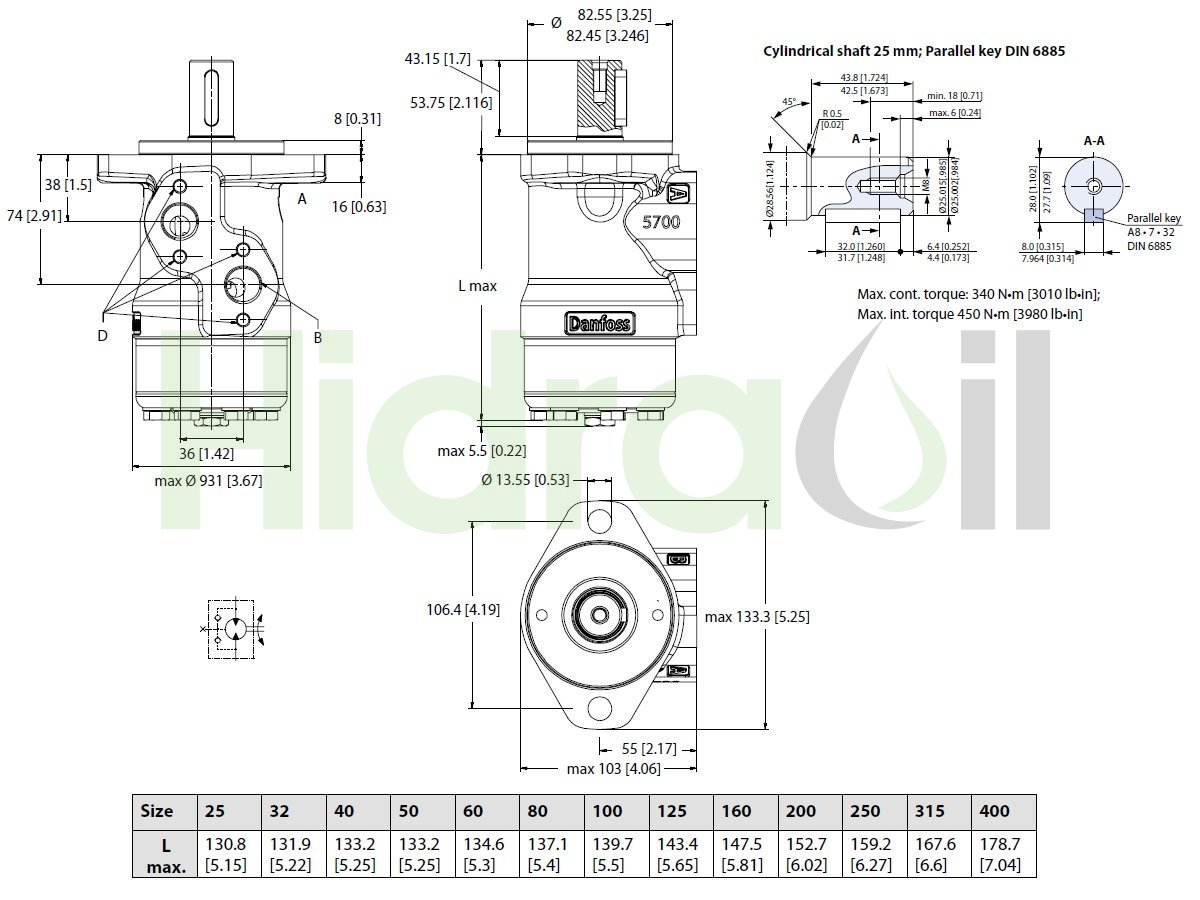

  Shaft type: Straight shaft 25 mm Diameter and 8 mm Width parallel key.
  Flange type: Tipo A2 (SAE A) con centraje from diámetro 82.5 mm y distancia from 106.4 mm entre centros from los 2 taladros.
  Displacement: 48.6 cm3/rev.
  Side Ports: G1/2 Threaded Ports (1/2" BSPP)
  Drain Port: G1/4 Threaded Port (1/4" BSPP)
  Intermittent operation: the permissible values may occur for max. 10% of every minute.
  Peak load: the permissible values may occur for max. 1% of every minute.
