151-0333 OMP 125 Sauer Danfoss hydraulic orbital motor 125 cm3 splined shaft z6

Sauer Danfoss
Shipping Worldwide
Thumbnail of 151-0333 OMP 125 Sauer Danfoss hydraulic orbital motor 125 cm3 splined shaft z6

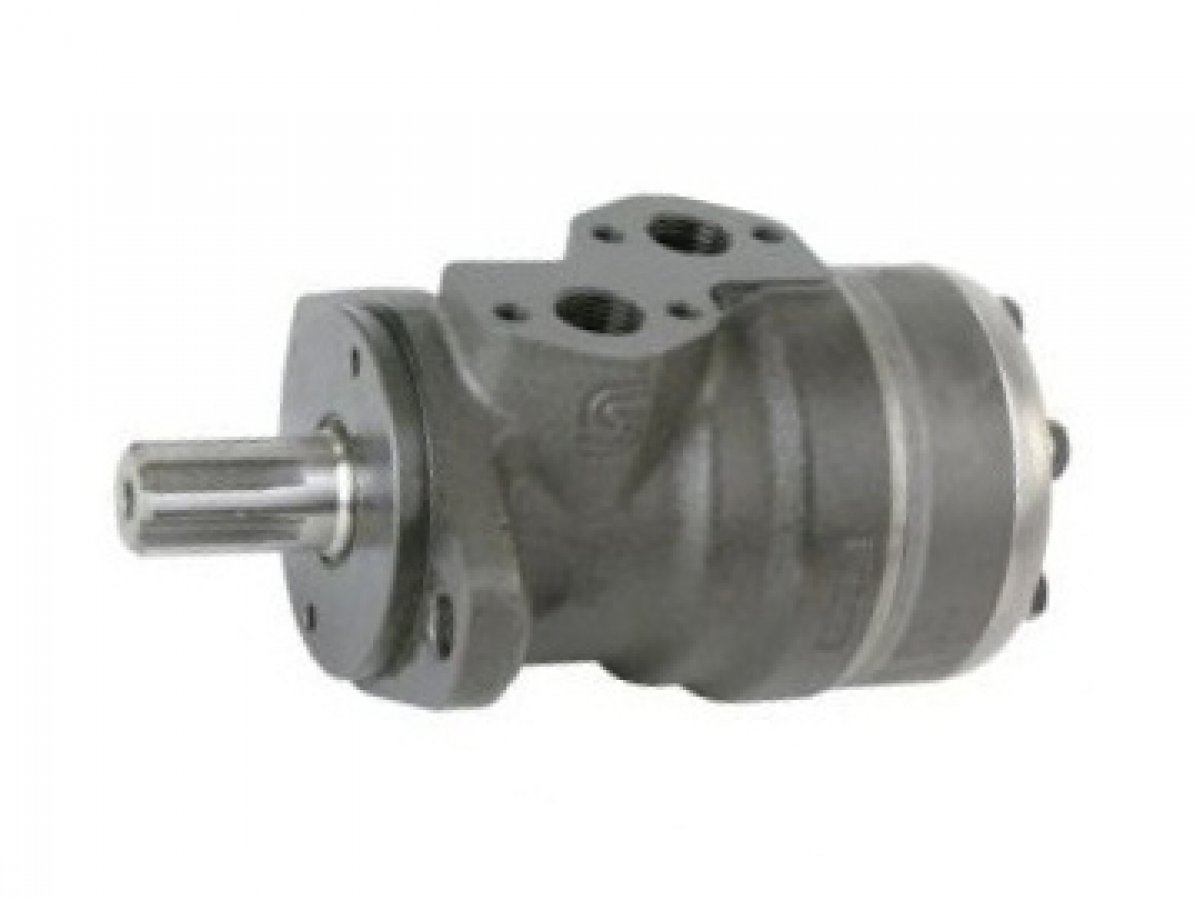

The images are indicative and may differ from the final product delivered.
INQUIRE ABOUT PRICE & STOCK

Payment and shipping metods

...

151-0333 OMP 125 Sauer Danfoss hydraulic orbital motor 125 cm3 splined shaft z6

Sauer Danfoss
Shipping Worldwide

INQUIRE ABOUT PRICE & STOCK

Payment and shipping metods

...

Product identification


  • Hidraoil Part number: GFX100151
  • Brand of product: Sauer Danfoss
  • Part number: 151-0333 OMP 125
  • Other numbers: 1510333 OMP125

Description


  • Hydraulic orbital motor for high torque and low/medium speed applications.
    Shaft type: Splined from 6 dientes y diámetro exterior from 25,4 mm
    Flange type: SAE-A Type 2 holes A2 Flange with 82.5 mm centering diameter and 106.4 mm distance between holes.
    Gearwheel set case width (L1): 16,7 mm
    Displacement: 125 cm3
    Side Ports: Threaded G1/2 ports (1/2" BSPP)
    Drain Port: sin drenaje
    Max speed: 480 rpm (intermittent operation: 600 rpm)
    Max. Torque: 240 Nm (intermittent operation: 290 Nm; peak load:370 Nm)
    Max. Output Power: 10 kW (intermittent operation: 12 kW)
    Max. Pressure Drop: 140 bar (intermittent operation: 175 bar; peak load:225 bar)
    Max oil flow: 60 liters/minute (intermittent operation: 75 liters/minute)
    Max. starting pressure with unloaded shaft: 9 bar
    Min. starting torque at max. press. drop cont.: 210 Nm
    Min. starting torque at max. press. drop int.: 270 Nm
    Intermittent operation: the permissible values may occur for max. 10% of every minute.
    Peak load: the permissible values may occur for max. 1% of every minute.

  • Main product category: Hydraulic Motors
  • Subcategory: Orbital
  • Approximate weight (kg): 6,0
  • Availability: Inquire about stock
  • Update date: 2015-01-17 22:44:02
