Product identification

• Hidraoil Part number: GFX100068
• Brand of product: Sauer Danfoss
• Part number: 151-0335 OMP 200
• Other numbers: 1510335 OMP200

Description

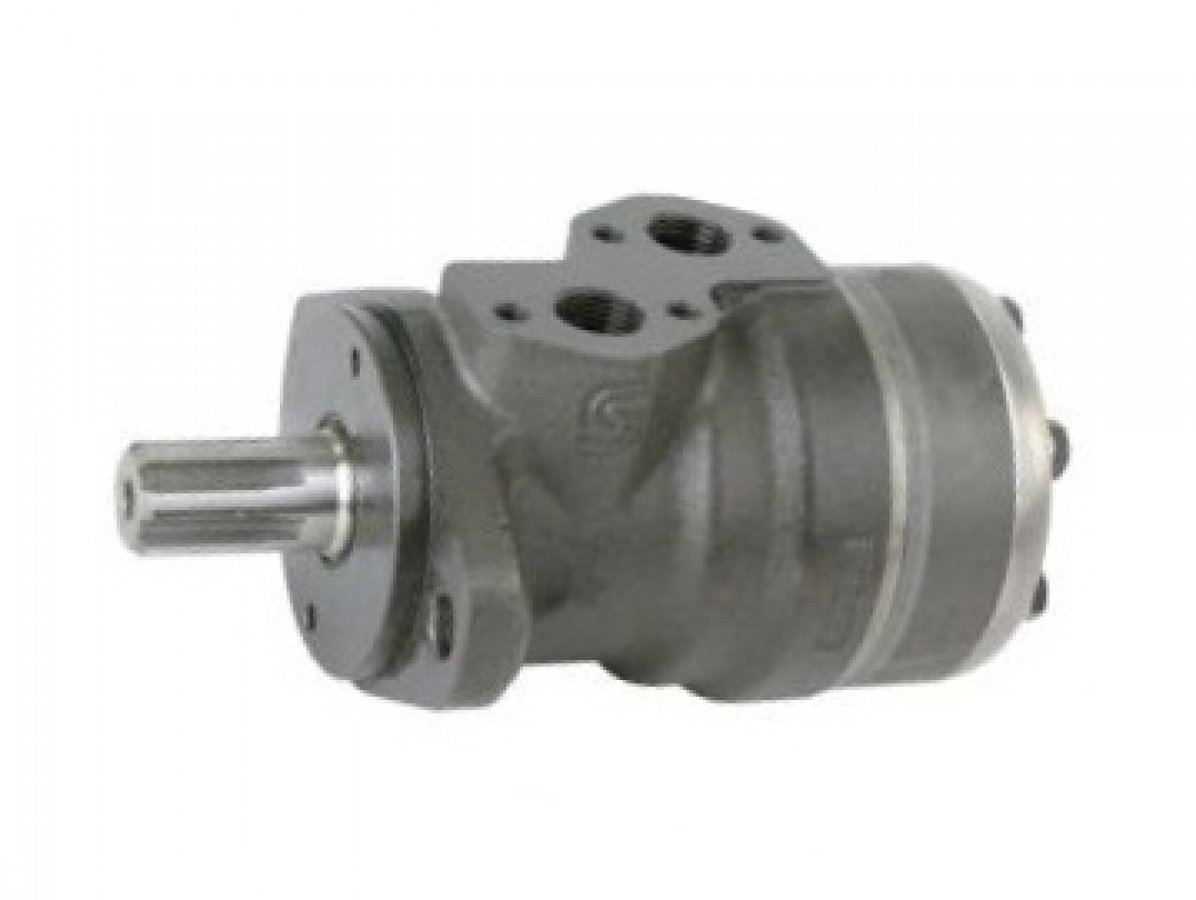

• Hydraulic orbital motor for high torque and low/medium speed applications.
  Shaft type: Splined from 6 dientes y diámetro exterior from 25.4 mm
  Flange type: Tipo A2 (SAE-A) con centraje from diámetro 82.5 mm y distancia from 106.4 mm entre centros from los 2 taladros
  Gearwheel set case width (L1): 26 mm
  Displacement: 194.6 cm3/rev
  Side Ports: Threaded G1/2 ports (1/2" BSPP)
  Drain Port: Without Drain port
  Max speed: 310 rpm (intermittent operation: 385 rpm)
  Max. Torque: 360 Nm (intermittent operation: 450 Nm; peak load:540 Nm)
  Max. Output Power: 10 kW (intermittent operation: 12 kW)
  Max. Pressure Drop: 140 bar (intermittent operation: 175 bar; peak load:225 bar)
  Max oil flow: 60 liters/minute (intermittent operation: 75 liters/minute)
  Max. starting pressure with unloaded shaft: 5 bar
  Min. starting torque at max. press. drop cont.: 340 Nm
  Min. starting torque at max. press. drop int.: 420 Nm
  Intermittent operation: the permissible values may occur for max. 10% of every minute.
  Peak load: the permissible values may occur for max. 1% of every minute.
