Product identification

• Hidraoil Part number: GFX101340
• Brand of product: Sauer Danfoss
• Part number: 151-0405 OMR 200
• Other numbers: 1510405 OMR200

Description

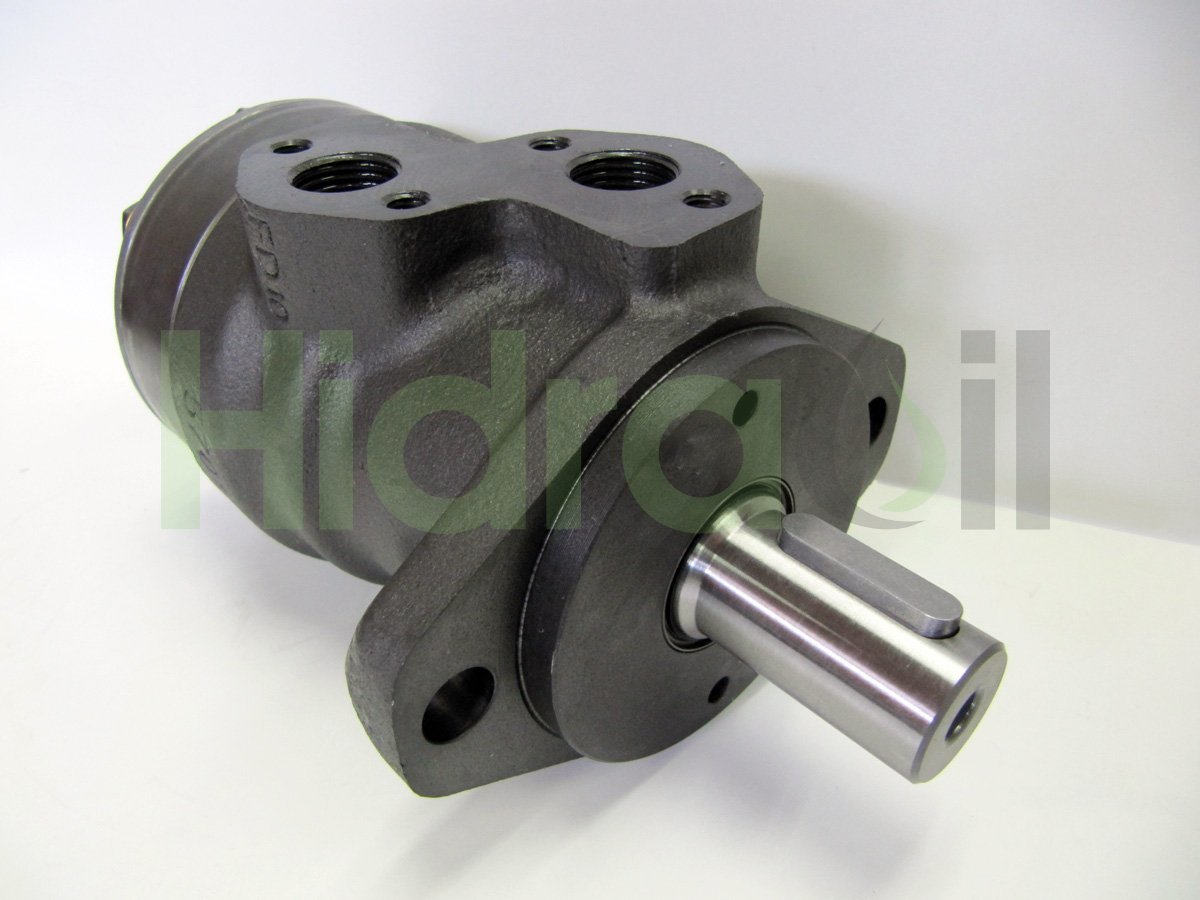

• Hydraulic orbital motor for high torque applications. Geroller type.
  Shaft type: Parallel 25.4 mm diameter with 6.4 mm key width.
  Flange type: SAE-A Type 2 holes A2 Flange with 82.5 mm centering diameter and 106.4 mm distance between holes..
  Gearwheel set case width (L1): 34,8 mm.
  Displacement: 199,8 cm3/rev.
  Side Ports: G1/2 Threaded Ports (1/2" BSPP)
  Drain Port: Without Drain port.
  Max speed: 300 rpm (intermittent operation: 375 rpm).
  Max. Torque: 300 Nm (intermittent operation: 390 Nm; peak load:560 Nm).
  Max. Output Power: 8 kW (intermittent operation: 10 kW).
  Max. Pressure Drop: 110 bar (intermittent operation: 140 bar; peak load:225 bar).
  Max oil flow: 60 liters/minute (intermittent operation: 75 liters/minute).
  Max. starting pressure with unloaded shaft: 5 bar.
  Min. starting torque at max. press. drop cont.: 260 Nm.
  Min. starting torque at max. press. drop int.: 330 Nm.
  Intermittent operation: the permissible values may occur for max. 10% of every minute.
  Peak load: the permissible values may occur for max. 1% of every minute.
