Product identification

• Hidraoil Part number: GFX100157
• Brand of product: Sauer Danfoss
• Part number: 151-0630 OMP 50
• Other numbers: 1510630 OMP50

Description

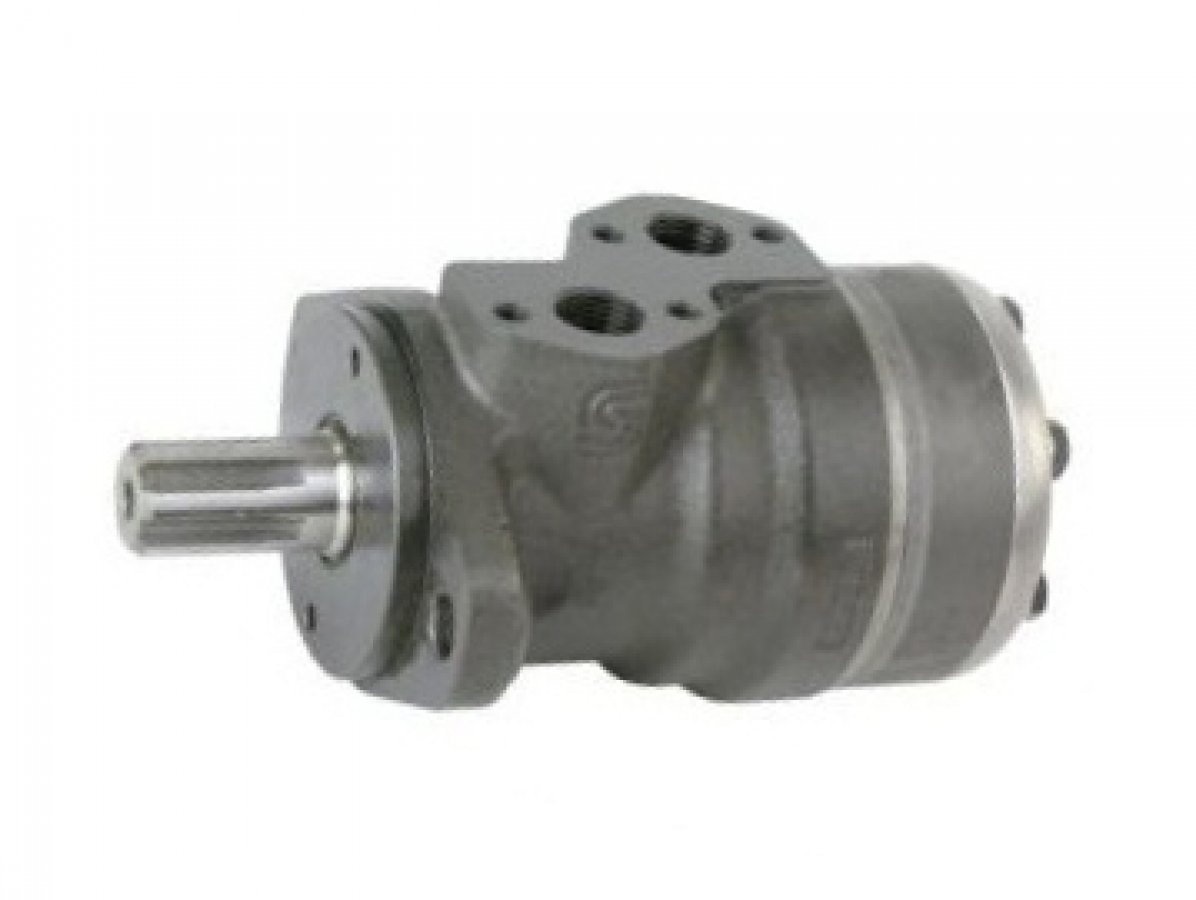

• Hydraulic orbital motor for high torque and low/medium speed applications.
  Shaft type: Splined from 6 dientes y diámetro exterior from 25,4 mm
  Flange type: SAE-A Type 2 holes A2 Flange with 82.5 mm centering diameter and 106.4 mm distance between holes.
  Gearwheel set case width (L1): 6,5 mm
  Displacement: 48,6 cm3
  Side Ports: Threaded 1/2" GAS
  Drain Port: G1/4 Threaded Port (1/4" BSPP)
  Max speed: 1230 rpm (intermittent operation: 1540 rpm)
  Max. Torque: 93 Nm (intermittent operation: 120 Nm; peak load:140 Nm)
  Max. Output Power: 10 kW (intermittent operation: 12 kW)
  Max. Pressure Drop: 140 bar (intermittent operation: 175 bar; peak load:225 bar)
  Max oil flow: 60 liters/minute (intermittent operation: 75 liters/minute)
  Max. starting pressure with unloaded shaft: 10 bar
  Min. starting torque at max. press. drop cont.: 80 Nm
  Min. starting torque at max. press. drop int.: 100 Nm
  Intermittent operation: the permissible values may occur for max. 10% of every minute.
  Peak load: the permissible values may occur for max. 1% of every minute.
