Product identification

• Hidraoil Part number: GFX101294
• Brand of product: Sauer Danfoss
• Part number: 151-6001 OMR 80
• Other numbers: 1516001 OMR80

Description

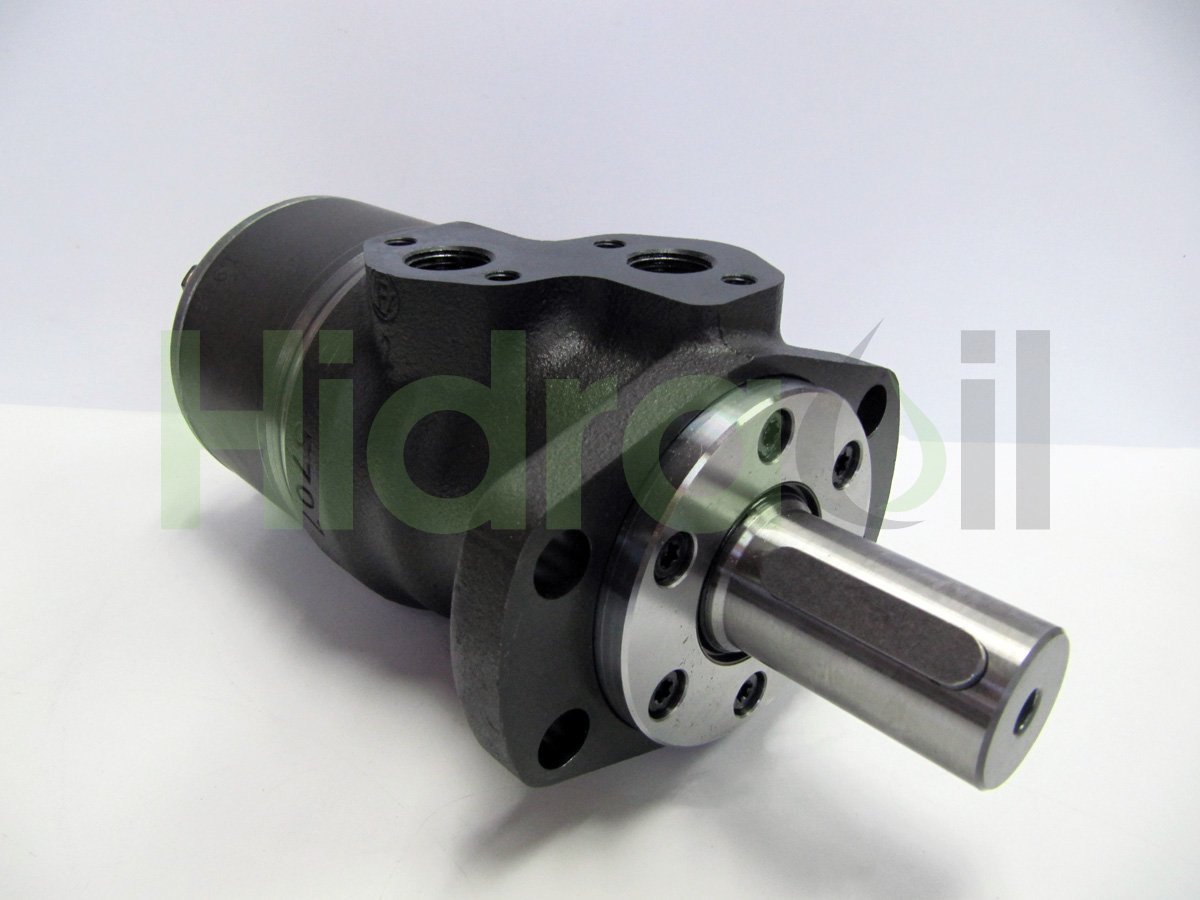

• Hydraulic orbital motor for High Torque applications. (geroller) from baja velocidad y alto par.
  Shaft type: Straight shaft Diameter 32 mm with 10 mm parallel key width.
  Flange type: Tipo A4 con centraje from diámetro 82,5 mm y diámetro from 106,4 mm entre centros from los 4 taladros.
  Gerotor/Geroller width (geroller): 14,0 mm.
  Displacement: 80,3 cm3/rev.
  Side Ports: Threaded 1/2" GAS.
  Drain Port: G1/4 Threaded Port (1/4" BSPP).
  Max speed: 750 rpm (intermittent operation: 940 rpm).
  Max. Torque: 195 Nm (intermittent operation: 220 Nm; peak load:270 Nm).
  Max. Output Power: 12,5 kW (intermittent operation: 15 kW).
  Max. Pressure Drop: 175 bar (intermittent operation: 200 bar; peak load:225 bar).
  Max oil flow: 60 liters/minute (intermittent operation: 75 liters/minute).
  Max. starting pressure with unloaded shaft: 10 bar.
  Min. starting torque at max. press. drop cont.: 150 Nm.
  Min. starting torque at max. press. drop int.: 170 Nm.
  Intermittent operation: the permissible values may occur for max. 10% of every minute.
  Peak load: the permissible values may occur for max. 1% of every minute.
