Product identification

• Hidraoil Part number: GFX100111
• Brand of product: Sauer Danfoss
• Part number: 151-6192 OMR 100
• Other numbers: 1516192 OMR100

Description

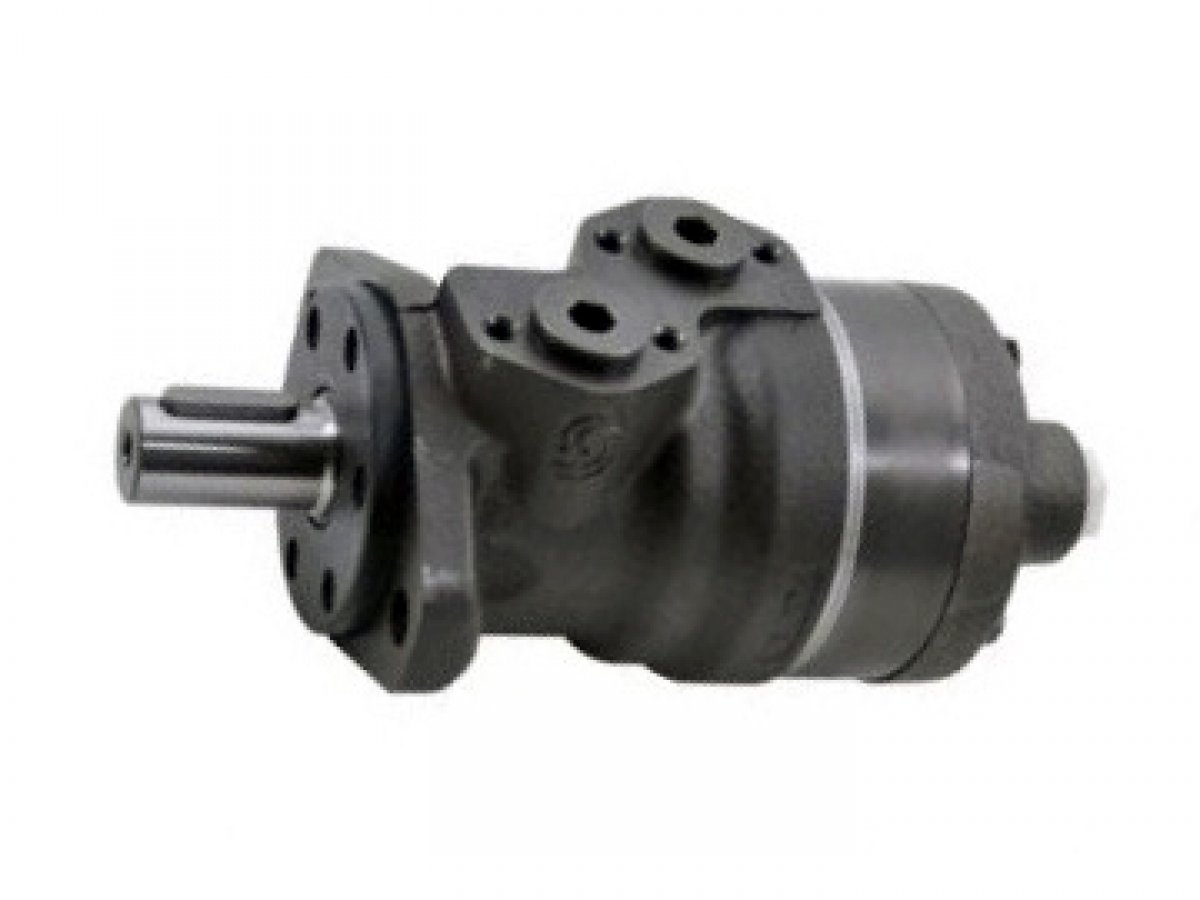

• Hydraulic orbital motor for high torque and low/medium speed applications. Robust and compact design. High starting torque and High Efficiency motors.
  Shaft type: Straight shaft 25 mm Diameter and 8 mm Width parallel key.
  Flange type: SAE-A Type 2 holes A2 Flange with 82.5 mm centering diameter and 106.4 mm distance between holes.
  Gearwheel set case width (L1): 17,4 mm
  Displacement: 99,8 cm3
  Rear ports: Threaded 1/2" GAS
  Drain Port: G1/4 Threaded Port (1/4" BSPP)
  Max speed: 600 rpm (intermittent operation: 750 rpm)
  Max. Torque: 240 Nm (intermittent operation: 280 Nm; peak load:320 Nm)
  Max. Output Power: 13 kW (intermittent operation: 15 kW)
  Max. Pressure Drop: 175 bar (intermittent operation: 200 bar; peak load:225 bar)
  Max oil flow: 60 liters/minute (intermittent operation: 75 liters/minute)
  Max. starting pressure with unloaded shaft: 10 bar
  Min. starting torque at max. press. drop cont.: 200 Nm
  Min. starting torque at max. press. drop int.: 230 Nm
  Intermittent operation: the permissible values may occur for max. 10% of every minute.
  Peak load: the permissible values may occur for max. 1% of every minute.
