Product identification

• Hidraoil Part number: GFX100115
• Brand of product: Sauer Danfoss
• Part number: 151-6196 OMR 250
• Other numbers: 1516196 OMR250

Description

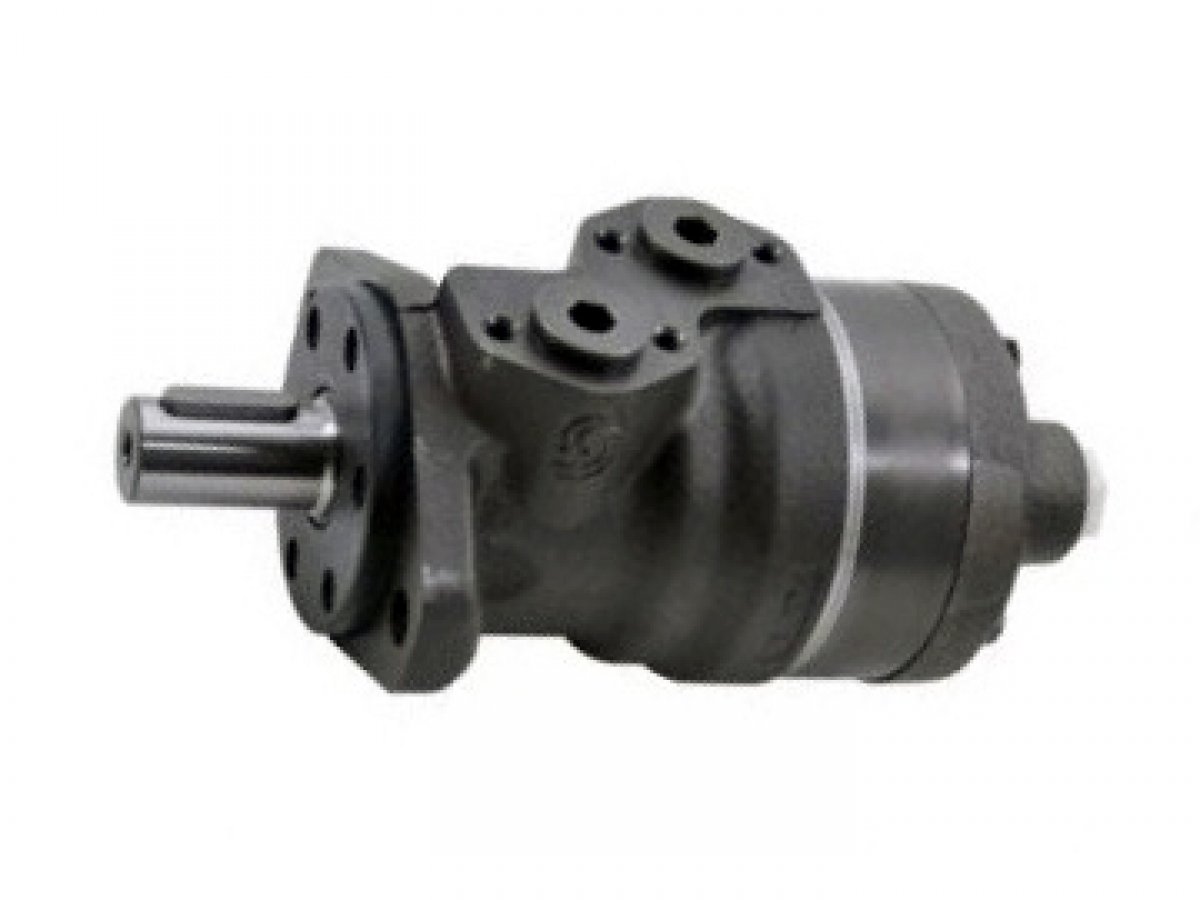

• Hydraulic orbital motor for high torque and low/medium speed applications. Robust and compact design. High starting torque and High Efficiency motors.
  Shaft type: Straight shaft 25 mm Diameter and 8 mm Width parallel key.
  Flange type: SAE-A Type 2 holes A2 Flange with 82.5 mm centering diameter and 106.4 mm distance between holes.
  Gearwheel set case width (L1): 43,5 mm
  Displacement: 249,3 cm3
  Rear ports: Threaded 1/2" GAS
  Drain Port: G1/4 Threaded Port (1/4" BSPP)
  Max speed: 240 rpm (intermittent operation: 300 rpm)
  Max. Torque: 300 Nm (intermittent operation: 380 Nm; peak load:600 Nm)
  Max. Output Power: 6 kW (intermittent operation: 8 kW)
  Max. Pressure Drop: 80 bar (intermittent operation: 110 bar; peak load:200 bar)
  Max oil flow: 60 liters/minute (intermittent operation: 75 liters/minute)
  Max. starting pressure with unloaded shaft: 5 bar
  Min. starting torque at max. press. drop cont.: 240 Nm
  Min. starting torque at max. press. drop int.: 310 Nm
  Intermittent operation: the permissible values may occur for max. 10% of every minute.
  Peak load: the permissible values may occur for max. 1% of every minute.
