Product identification

• Hidraoil Part number: GFX101691
• Brand of product: Danfoss
• Part number: 151B2151 OMV 400
• Other numbers: 151B 2151 OMV400

Description

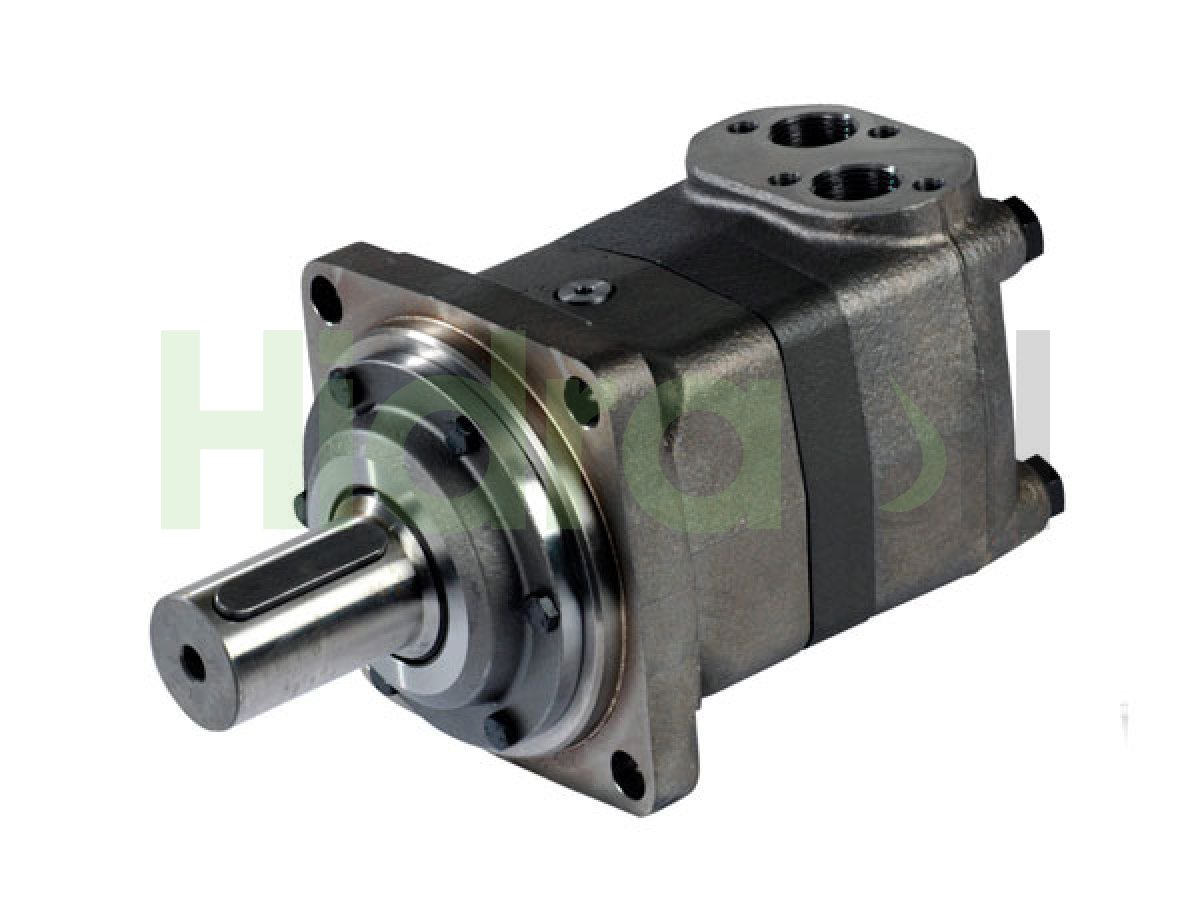

• Hydraulic orbital motor for high torque and low/medium speed applications. Robust and compact design. High starting torque and High Efficiency motors.
  Shaft type: Parallel diameter 57,1 mm (2-1/4") con chaveta from ancho 12,7 mm.
  Flange type: Square 4 holes Flange with 160 mm centering diameter and 200 mm diameter between hole centers.
  Gerotor/Geroller width (L1): 29,0 mm.
  Displacement: 400,9 cm3/rev.
  Side Ports: Threaded 1-5/16"-12 UN.
  Drain Port: 9/16"-18 UNF GAS.
  Max speed: 500 rpm (intermittent operation: 600 rpm).
  Max. Torque: 1180 Nm (intermittent operation: 1410 Nm).
  Max. Output Power: 53,5 kW (intermittent operation: 64 kW).
  Max. Pressure Drop: 200 bar (intermittent operation: 240 bar; peak load:280 bar).
  Max oil flow: 200 liters/minute (intermittent operation: 240 liters/minute).
  Max. starting pressure with unloaded shaft: 8 bar.
  Min. starting torque at max. press. drop cont.: 910 Nm.
  Min. starting torque at max. press. drop int.: 1090 Nm.
  Intermittent operation: the permissible values may occur for max. 10% of every minute.
  Peak load: the permissible values may occur for max. 1% of every minute.
