Product identification

• Hidraoil Part number: GFX102346
• Brand of product: Danfoss
• Part number: 151B3033 OMTW 315
• Other numbers: 151B 3033 OMTW315

Description

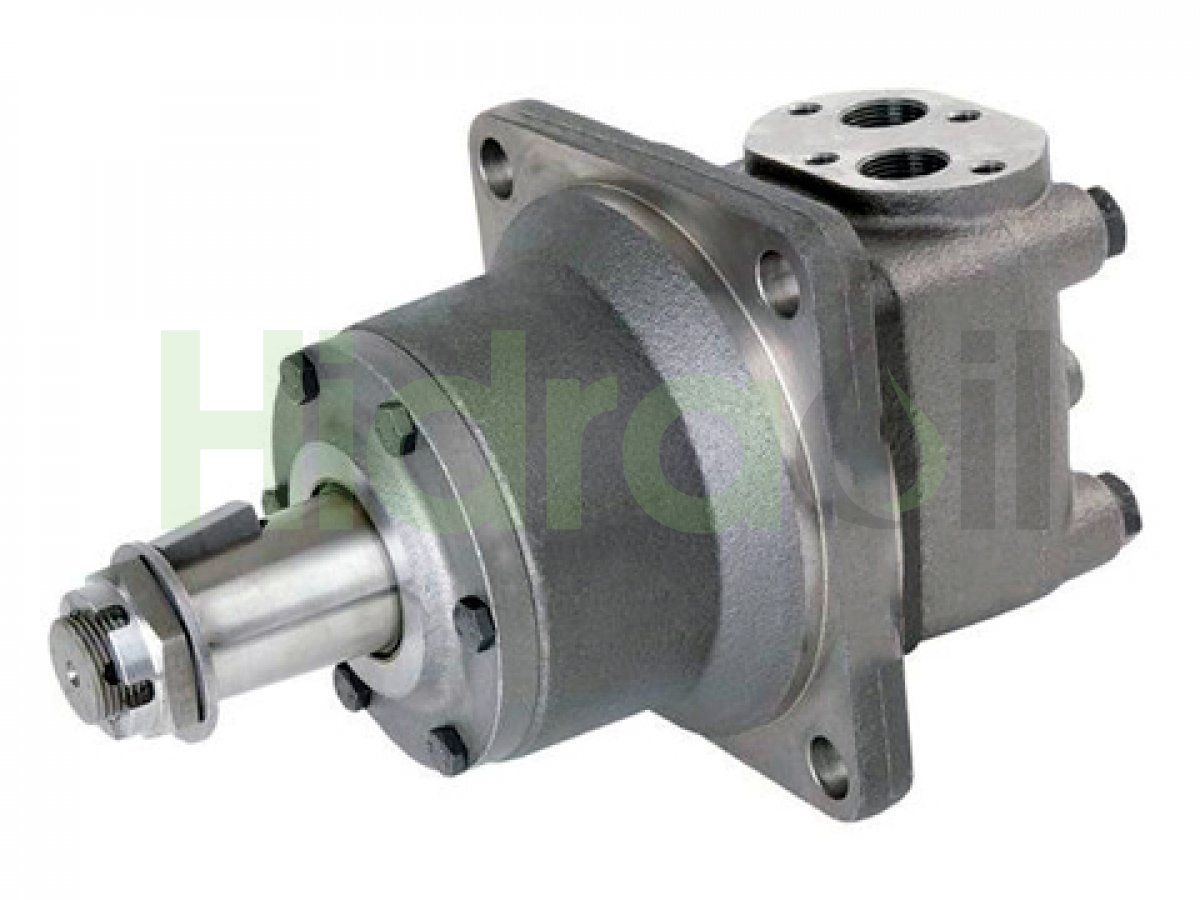

• Hydraulic orbital motor Danfoss (former Sauer Danfoss) for applications requiring high Torque at low / medium Speed.

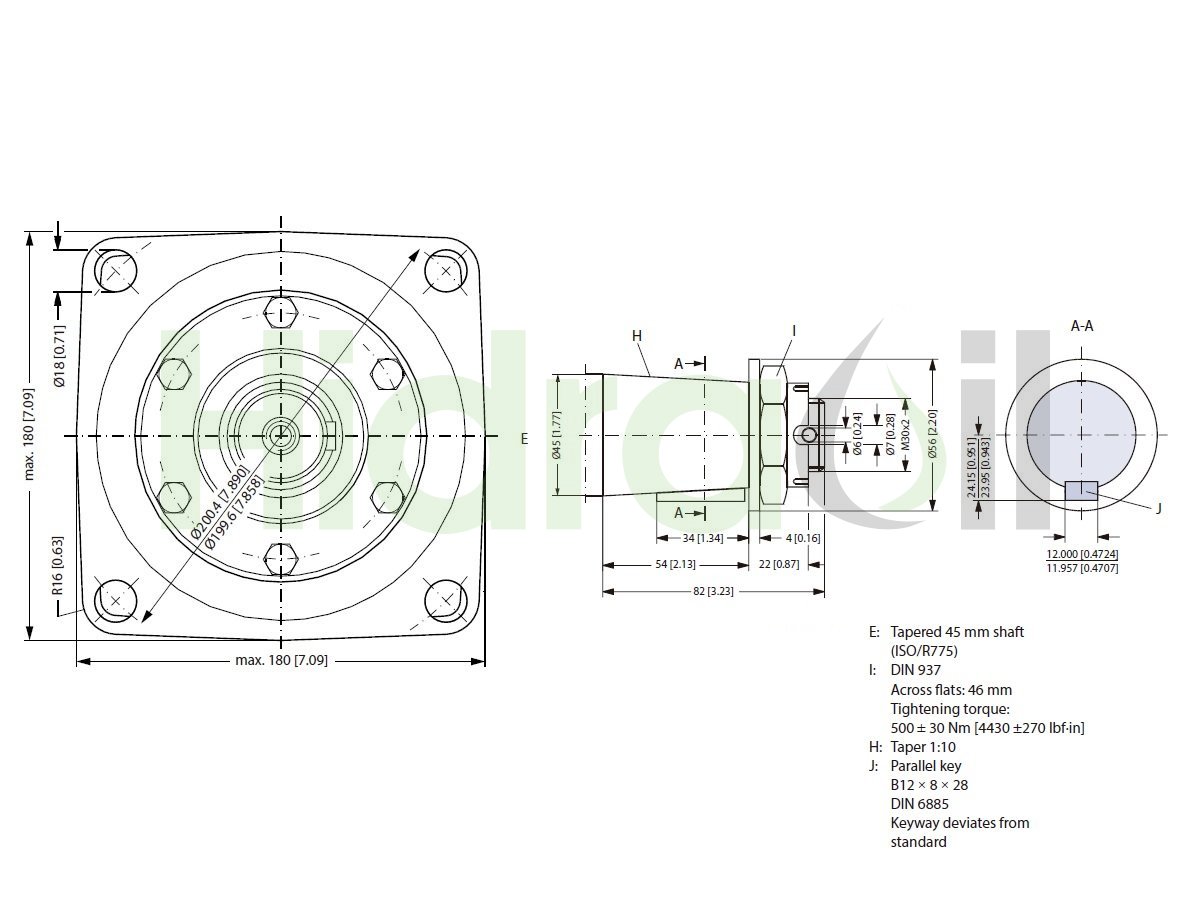

  Shaft type: Tapered shaft 1:10 and diameter 45 mm with key width 12 mm.

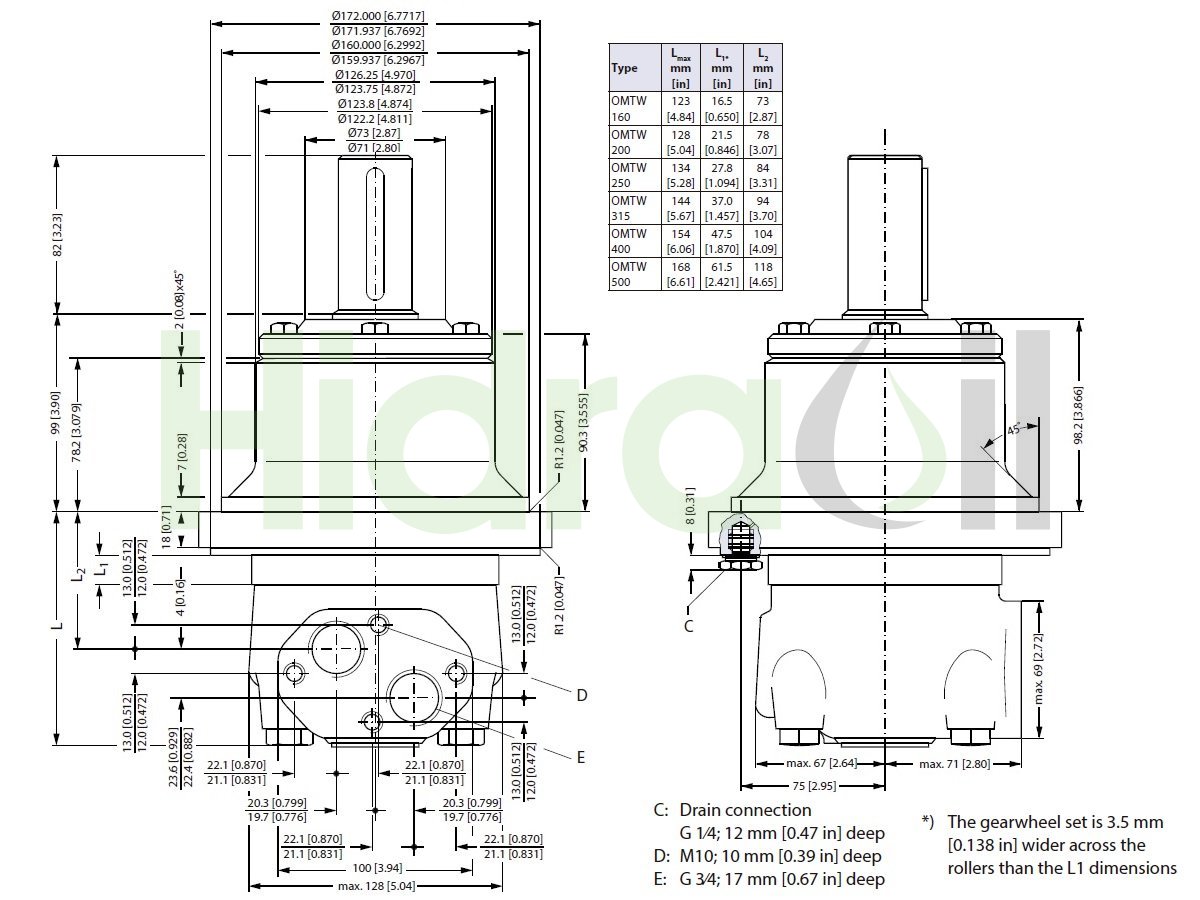

  Flange type: Wheel type with centering diameter 160 mm and 4 holes square flange.
  Gearwheel set case width (L1): 37 mm
  Displacement: 326,3 cm3/rev
  Side Ports: G3/4 Threaded Ports (3/4" BSPP)
  Drain Port: 1/4" GAS
  Max speed: 380 rpm (intermittent operation: 460 rpm)
  Max. Torque: 950 Nm (intermittent operation: 1140 Nm)
  Max. Output Power: 33,5 kW (intermittent operation: 40 kW)
  Max. Pressure Drop: 200 bar (intermittent operation: 240 bar)
  Max oil flow: 125 liters/minute (intermittent operation: 150 liters/minute)
  Max. starting pressure with unloaded shaft: 10 bar
  Min. starting torque at max. press. drop cont.: 740 Nm
  Min. starting torque at max. press. drop int.:890 Nm
  Intermittent operation: the permissible values may occur for max. 10% of every minute.
