Product identification

• Hidraoil Part number: GFX101197
• Brand of product: Danfoss White
• Part number: 151F0608 OMSS 400
• Other numbers: 151F 0608 OMSS400 151F0308 151F 0308

Description

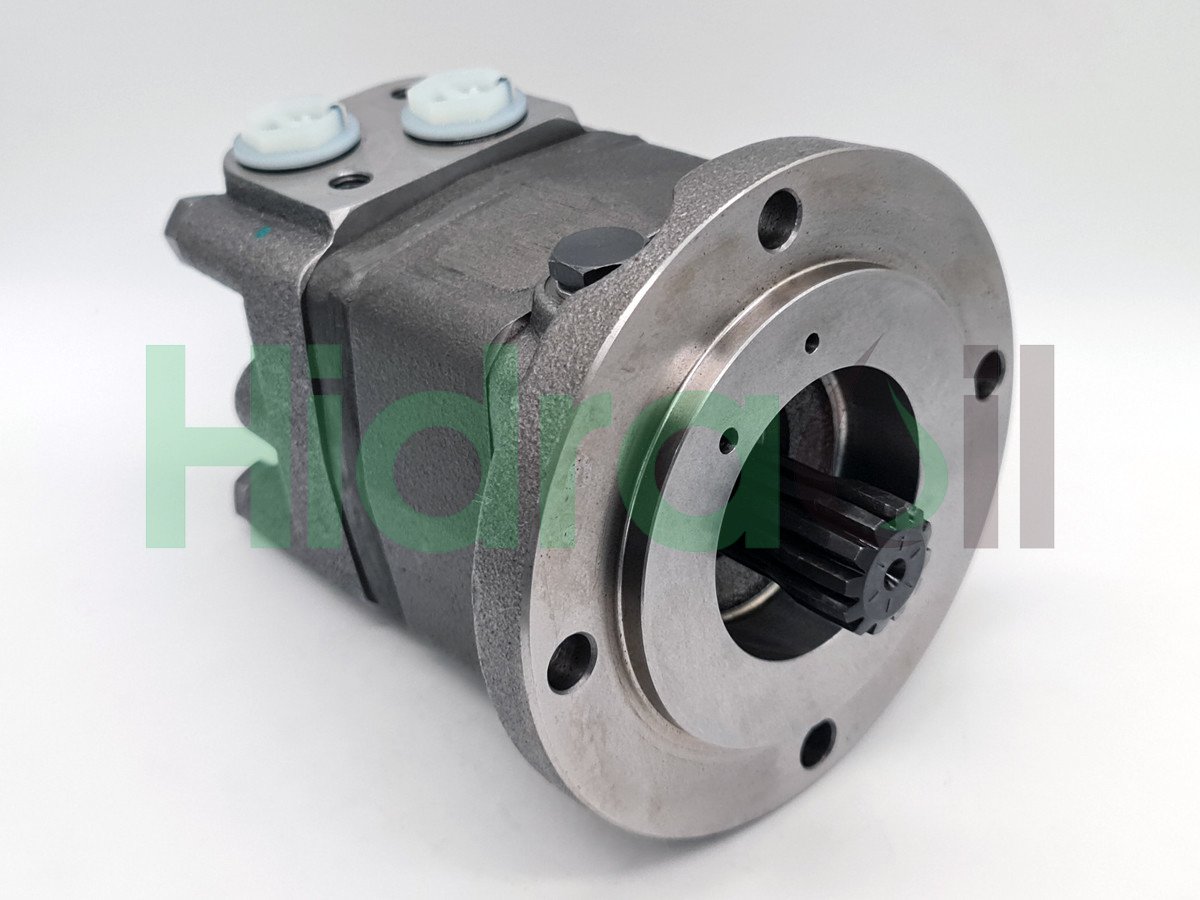

• Hydraulic Orbital Motor for Low speed and High Torque applications.
  Shaft type: Splined tipo cardan.
  Flange type: Redonda con fijación mediante 4 taladros, centraje from diámetro 100 mm y 125 mm from diámetro entre centros from taladros.
  Gerotor/Geroller width (geroller): 68,4 mm.
  Displacement: 393 cm3/rev.
  Side Ports: G1/2 Threaded Ports (1/2" BSPP)
  Drain Port: G1/4 Threaded Port (1/4" BSPP)
  Max speed: 190 rpm (intermittent operation: 230 rpm).
  Max. Torque: 865 Nm (intermittent operation: 990 Nm).
  Max. Output Power: 11 kW (intermittent operation: 12,5 kW).
  Max. Pressure Drop: 160 bar (intermittent operation: 190 bar; peak load:210 bar).
  Max oil flow: 75 liters/minute (intermittent operation: 90 liters/minute).
  Max. starting pressure with unloaded shaft: 8 bar.
  Min. starting torque at max. press. drop cont.: 710 Nm.
  Min. starting torque at max. press. drop int.: 840 Nm.
  Intermittent operation: the permissible values may occur for max. 10% of every minute.
  Peak load: the permissible values may occur for max. 1% of every minute.
