Product identification

• Hidraoil Part number: GFX102039
• Brand of product: Roquet
• Part number: 1LM27-12DG09R
• Other numbers: 1LM2712DG09R 1LM2712DGO9R

Description

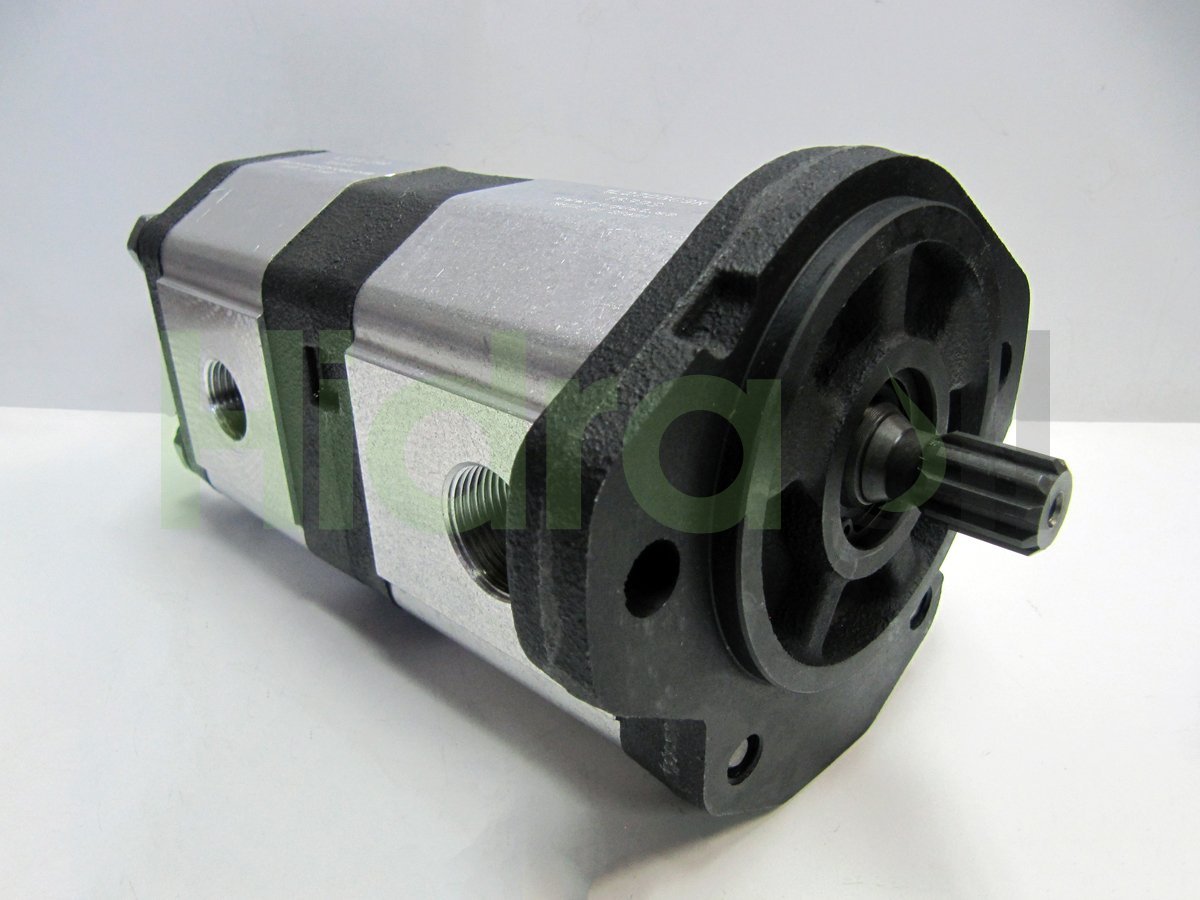

• Hydraulic external gear tandem pump Roquet with aluminum case of group 2.
  Type: Fixed displacement.
  Displacement: 18+8 cm3/rev.
  Flow @ 1500 rpm: 27+12 liters/minute (39 liters/minute total).
  Rotation: Clockwise rotation.
  Flange type: SAE-A type. Centraje from 82,5 mm.
  Shaft type: Splined with 9 teeth and external diameter 15.45 mm. ANSI B 92.1 9T 16/32 SP.
  Tipo from tomas from entrada from aceite: Threaded GAS (BSPP).
  Outlet ports: Threaded GAS (BSPP).
