255290A6312BAAAA White drive hydraulic orbital motor 290 cm3 with 25 mm straight shaft 2 hole mount GAS ports

White Drive Products
Shipping Worldwide

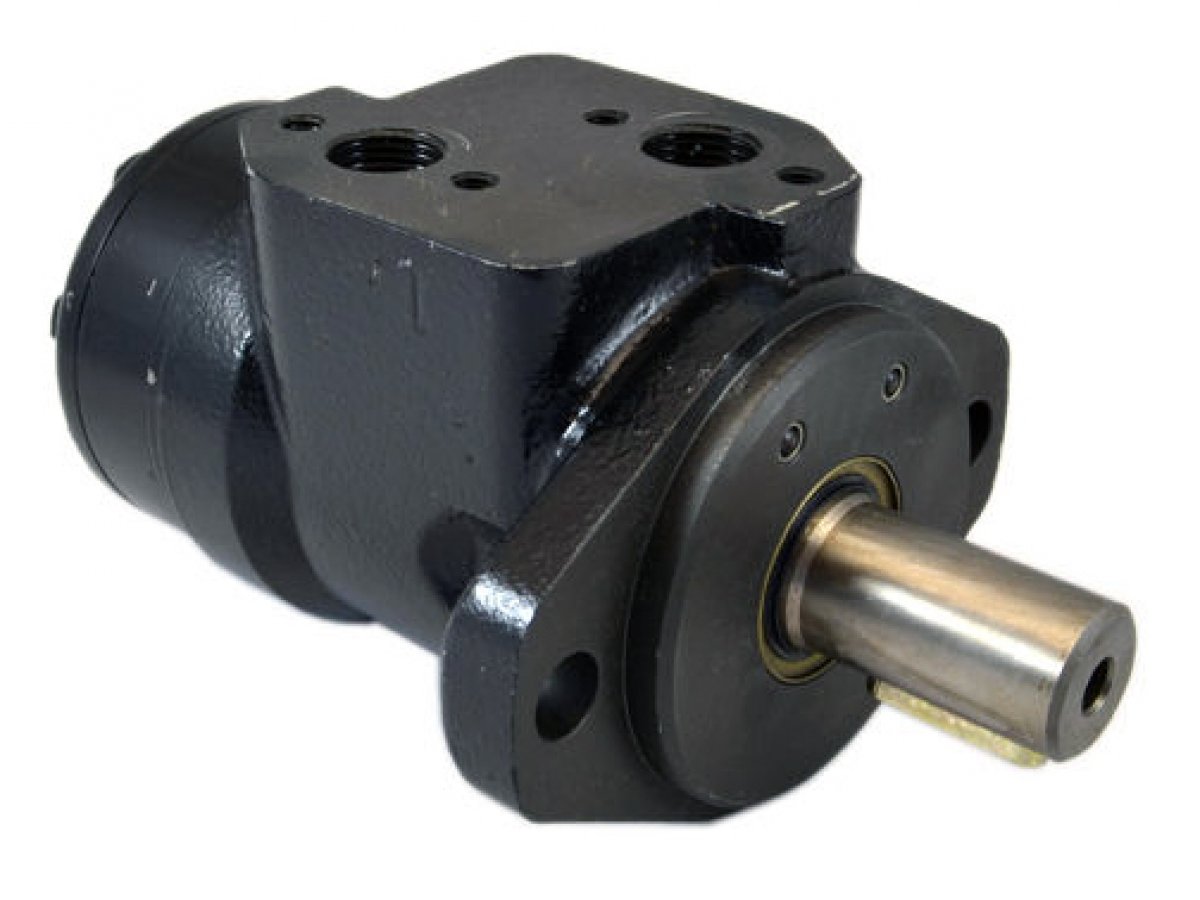

Thumbnail of 255290A6312BAAAA White drive hydraulic orbital motor 290 cm3 with 25 mm straight shaft 2 hole mount GAS ports
The images are indicative and may differ from the final product delivered.
INQUIRE ABOUT PRICE & STOCK

Payment and shipping metods

...

255290A6312BAAAA White drive hydraulic orbital motor 290 cm3 with 25 mm straight shaft 2 hole mount GAS ports

White Drive Products
Shipping Worldwide

INQUIRE ABOUT PRICE & STOCK

Payment and shipping metods

...

Product identification


  • Hidraoil Part number: GFX100088
  • Brand of product: White Drive Products
  • Part number: 255290A6312BAAAA
  • Other numbers: 255290A6312AAAAA 256290A6312BAAAA 256290A6312AAAAA

Description


  • Hydraulic orbital motor for high torque and low/medium speed applications. Robust and compact design. High starting torque and High Efficiency motors.
    Shaft type: Straight shaft 25 mm Diameter and 8 mm Width parallel key.
    Flange type: Tipo SAE-A con centraje from diámetro 82.5 mm y distancia entre los 2 taladros from 106.4 mm
    Displacement: 291 cm3/rev
    Side Ports: Threaded G1/2 ports (1/2" BSPP)
    Max speed: 210 rpm (intermittent operation: 256 rpm)
    Max. Torque: 526 Nm (intermittent operation: 664 Nm)
    Max. Pressure Drop: 138 bar (intermittent operation: 190 bar; peak load:207 bar)
    Max oil flow: 61 liters/minute (intermittent operation: 76 liters/minute)

  • Main product category: Hydraulic Motors
  • Subcategory: Orbital
  • Approximate weight (kg): 8,8
  • Availability: Inquire about stock
  • Update date: 2015-05-04 17:21:57
