Product identification

• Hidraoil Part number: GFX100037
• Brand of product: Dynamatic
• Part number: 550/1/39341
• Other numbers: 550139341 550/B/38906 550B38906 C44.0/17.0L39341 C44.0/17.0L 39341 C44.0/17.0L 38334 C44.0/17.0L38334

Description

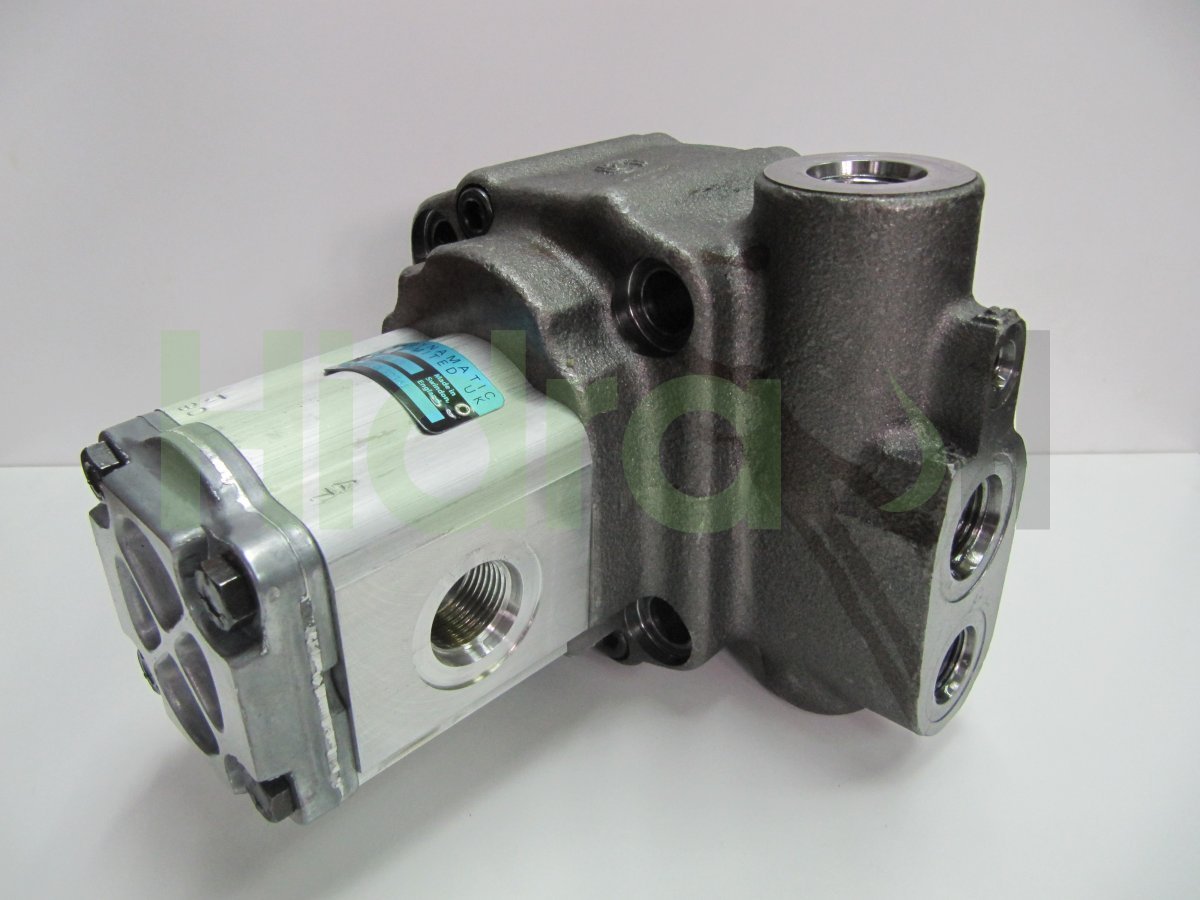

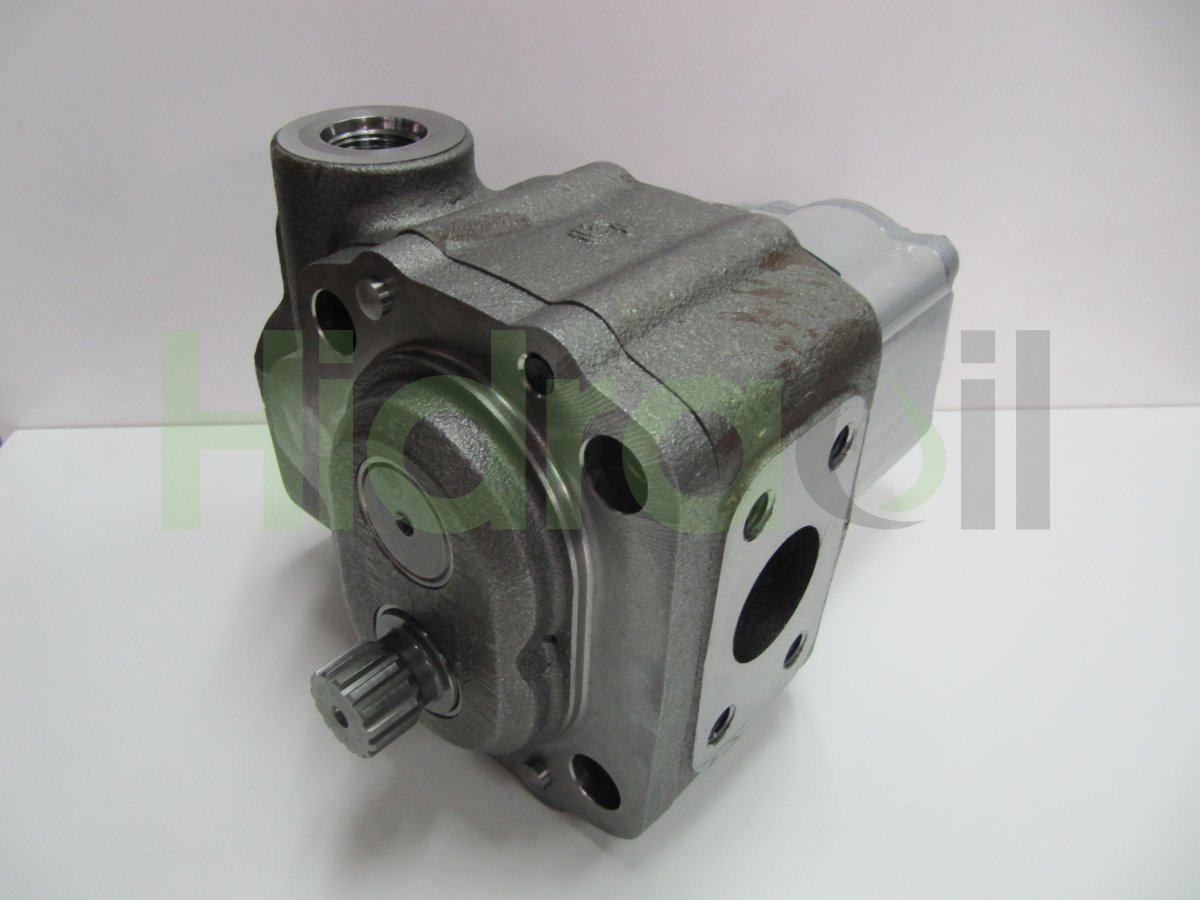

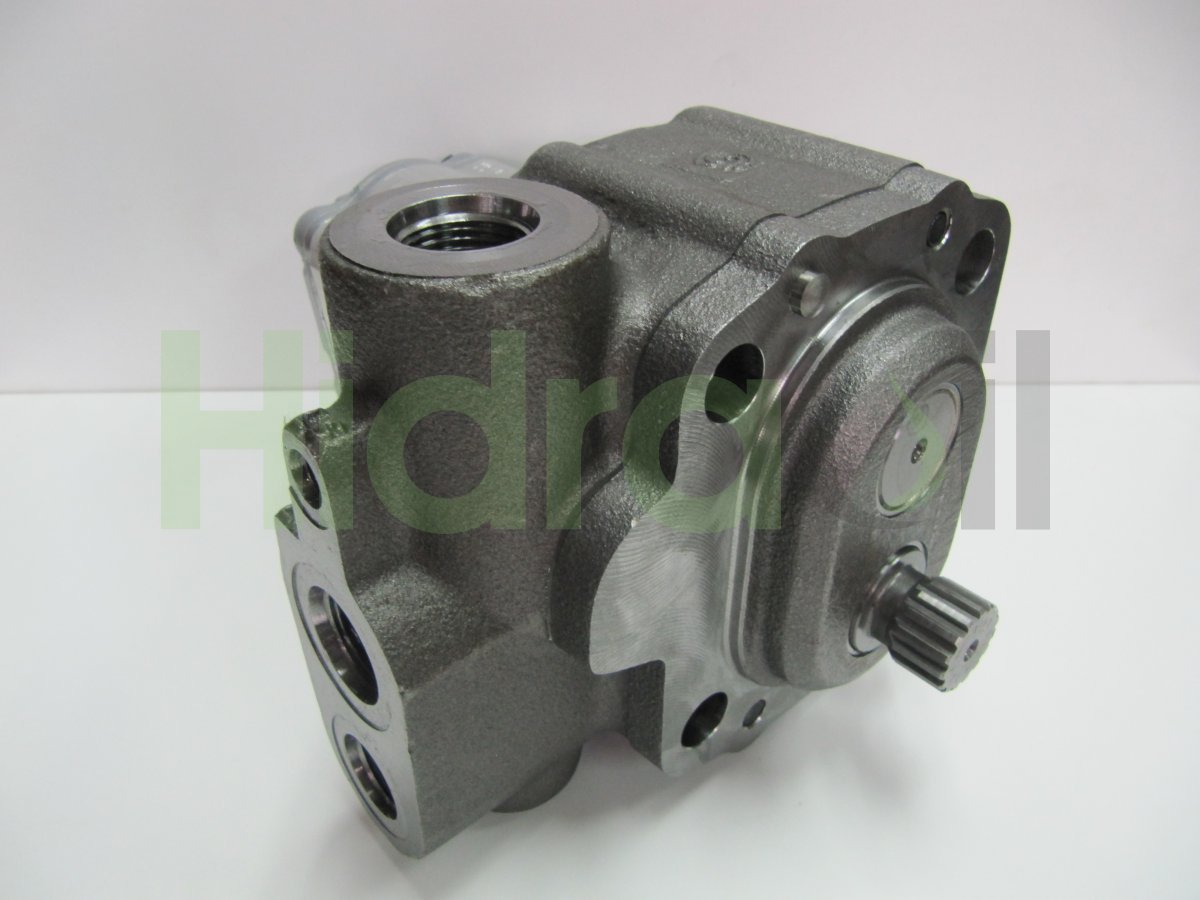

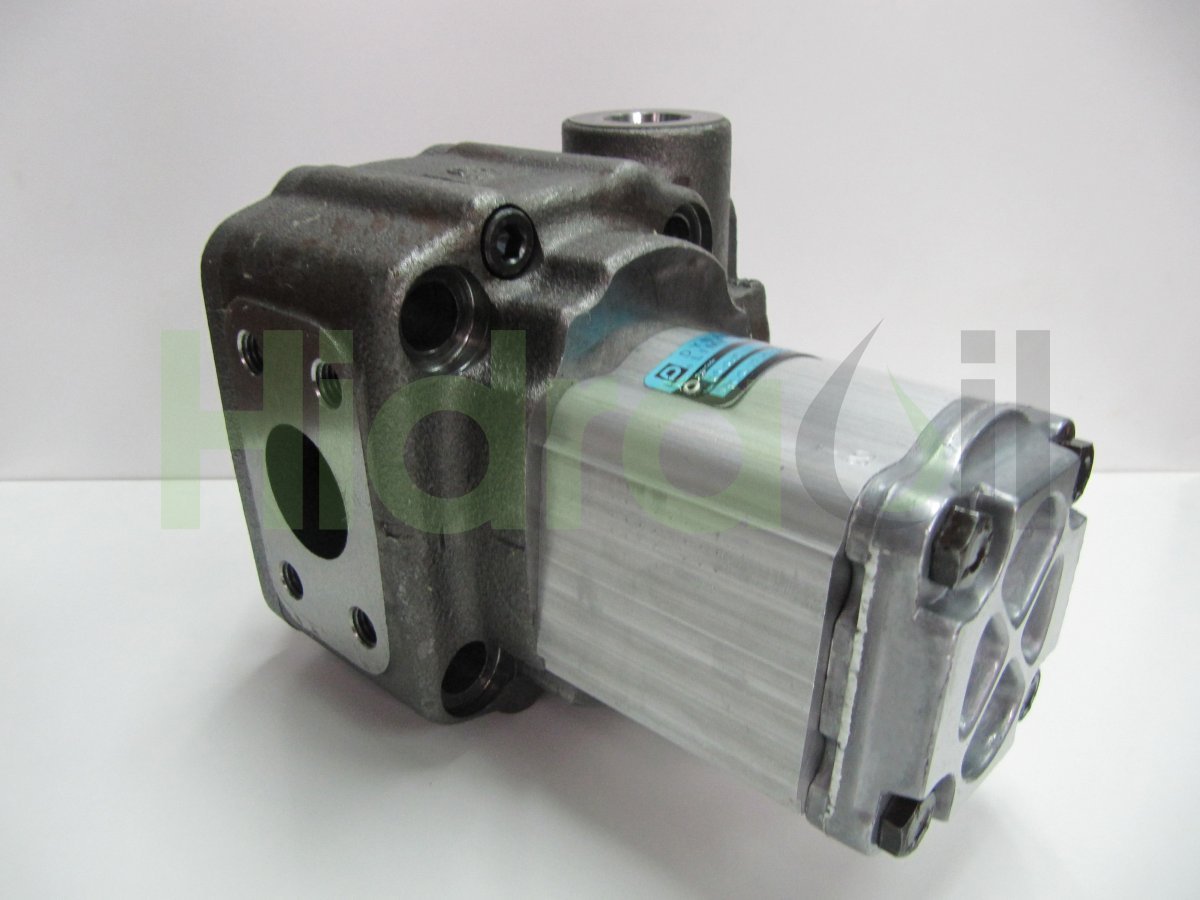

• Hydraulic external gear tandem pump con cuerpo from fundición en la bomba delantera y cuerpo from aluminio en la bomba trasera.
  Displacements: 44+17 cm3/rev.
  Flow @ 1500 rpm: 66+25.5 liters/minute.
  Max speed: 3000 rpm.
  Max working pressure: 240 bar en la bomba frontal y 210 bar en la bomba trasera.
  Rotation: Clockwise rotation.
  Shaft type: Splined z15.
