Product identification

• Hidraoil Part number: GFX101694
• Brand of product: Parker
• Part number: F12-250-QF-SV-K-000 3787184
• Other numbers: F12-250-QF-SV-K-000-0000-0 F12250QFSVK-000 F12 250 QF SV K 000 0000 0 F12250QFSVK00000000 378 7184 voac volvo

Description

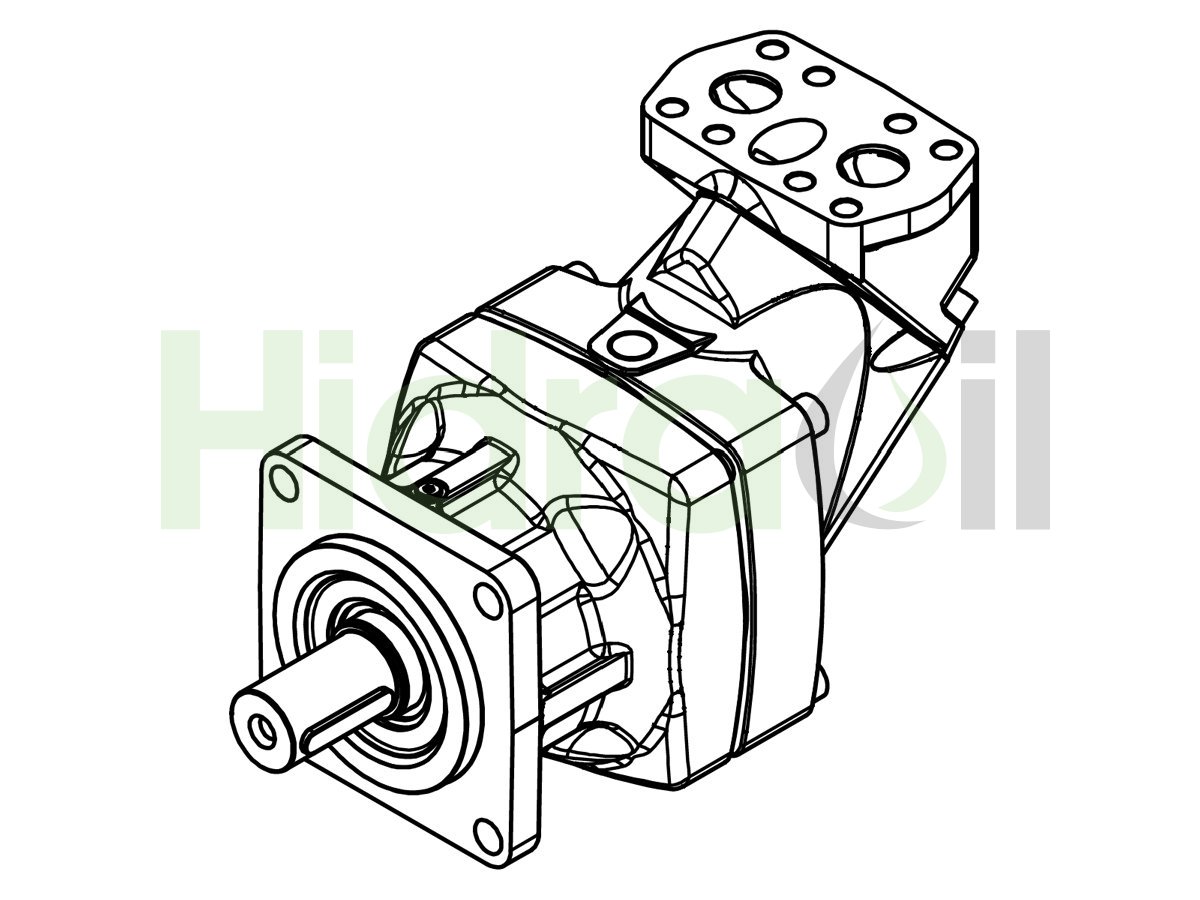

• Hydraulic Piston Motor fixed displacement for applications with high demands.
  Displacement: 242 cm3/rev.
  Shaft type: Cilyndrical shaft 50 mm diameter and 14 mm key width.

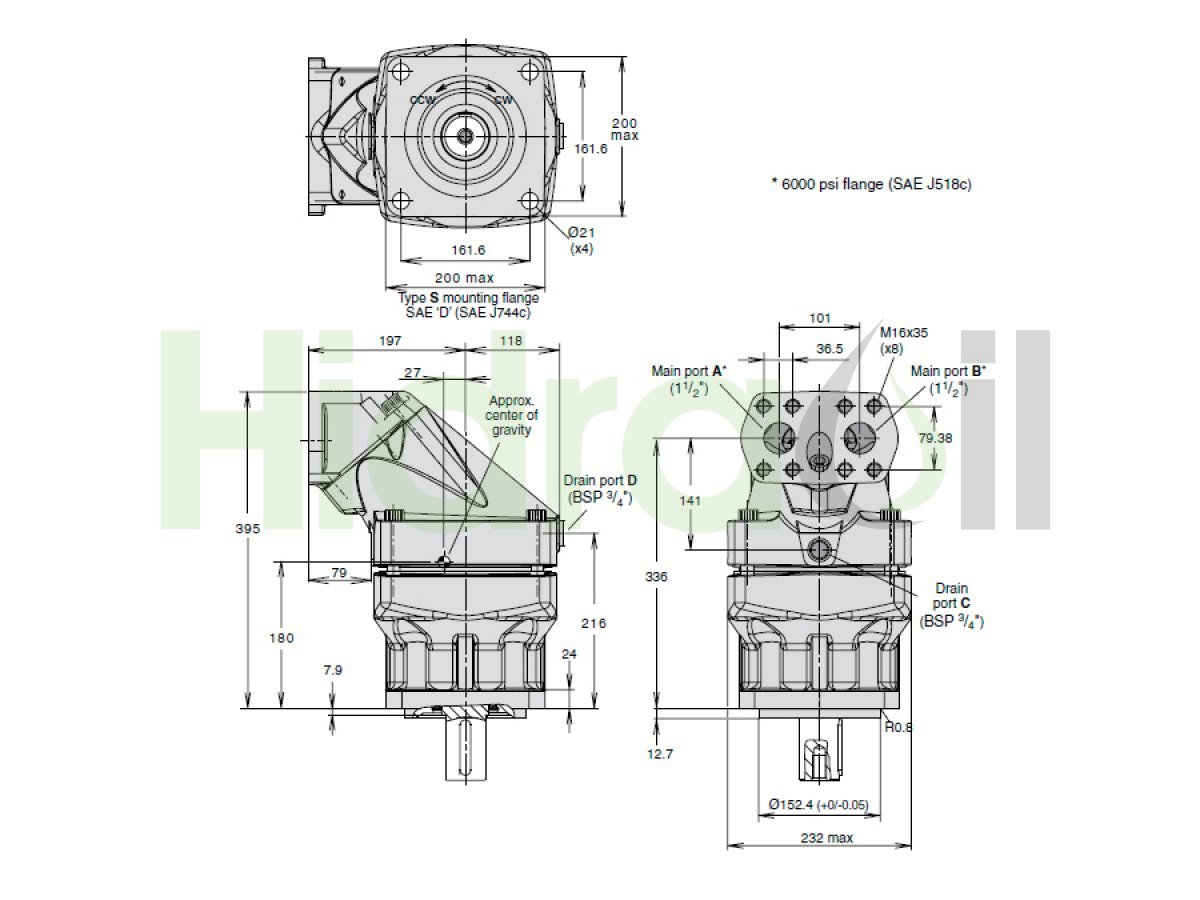

  Flange type: SAE flange type with 4 holes and centering diameter 152.4 mm.
  Ports A and B: -.
  Drain port: -.
  Rotation: Bidirectional.
  Max speed: 2700 rpm (intermittent operation: 3000 rpm).
  Minimum rotation speed: 50 rpm.
  Max working pressure: 350 bar (intermittent operation: 420 bar).
  Max oil flow: 653 liters/minute (intermittent operation: 726 liters/minute).
  Torque at 100 bar: 384,1 Nm.
  Shaft seal material: Type V.
  Intermittent working value is allowed for up to maximum of 6 seconds per minute.
  Please refer to specific conditions for operating this product as up to pump.
