Product identification

• Hidraoil Part number: GFX101389
• Brand of product: Casappa
• Part number: KM30.34L0-83E3-LEB/ED-N
• Other numbers: 03578452 KM3034L083E3LEBEDN KM30 34L0 83E3 LEB ED N
• Approximate weight (kg): 11,0

Description

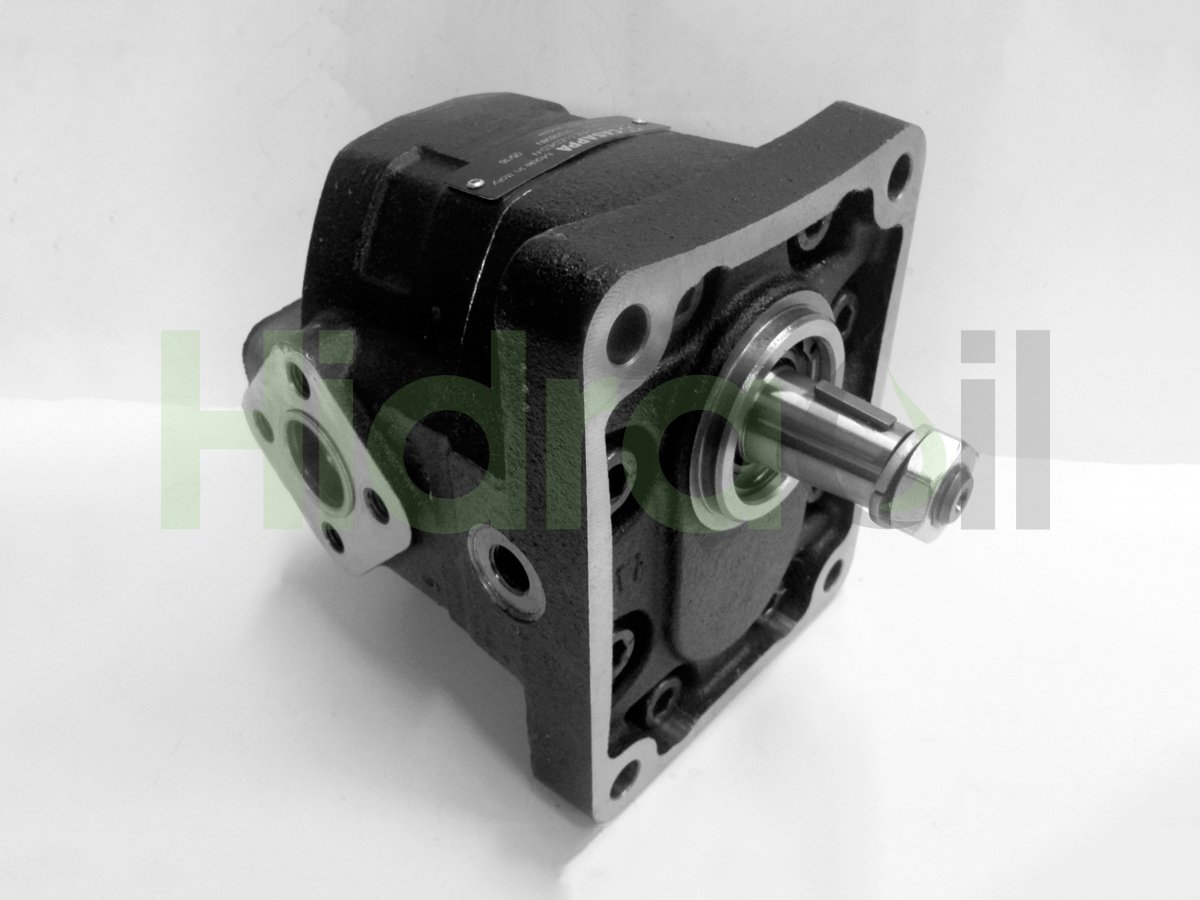

• Hydraulic external gear motor Group 3 with cast iron case.
  Displacement: 34 cm3/rev.
  Max working Pressure: 220 bar.
  Speed Range: From 350 up to 3000 rpm.
  Rotation: Bidirectional with G1/4 side drain port.
  Shaft type: Tapered 1:8 with 4 mm key width.
  Flange type: European type with 50.8 mm centering diameter and 4 holes distance 128 x 98 mm.
  Inlet ports: Flange type port.
  Outlet ports: Flange type port.
