Product identification

• Hidraoil Part number: GFX101446
• Brand of product: Casappa
• Part number: KM30.73R0-83E3-LED/EF-N
• Other numbers: KM3073R083E3LEDEFN KM30 73R0 83E3 LED EF N
• Approximate weight (kg): 11,0

Description

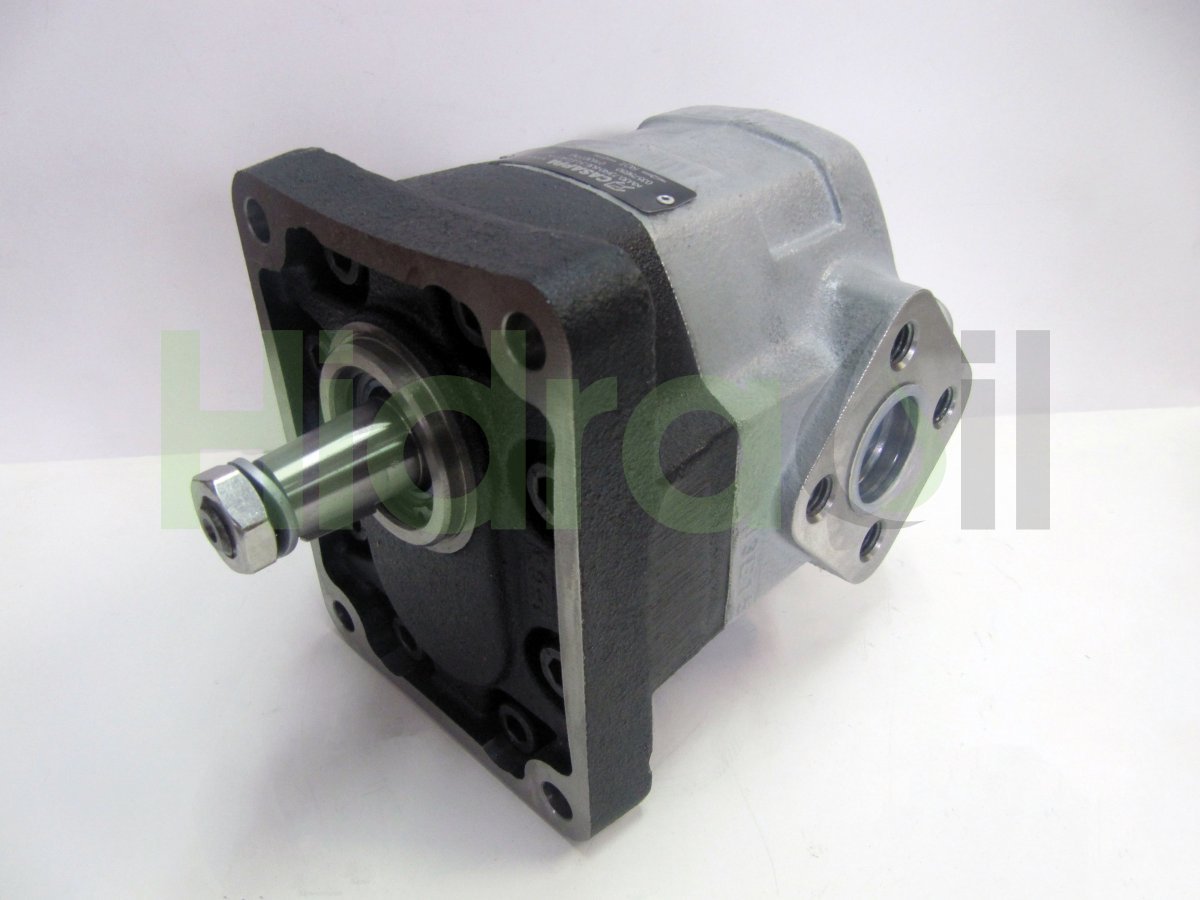

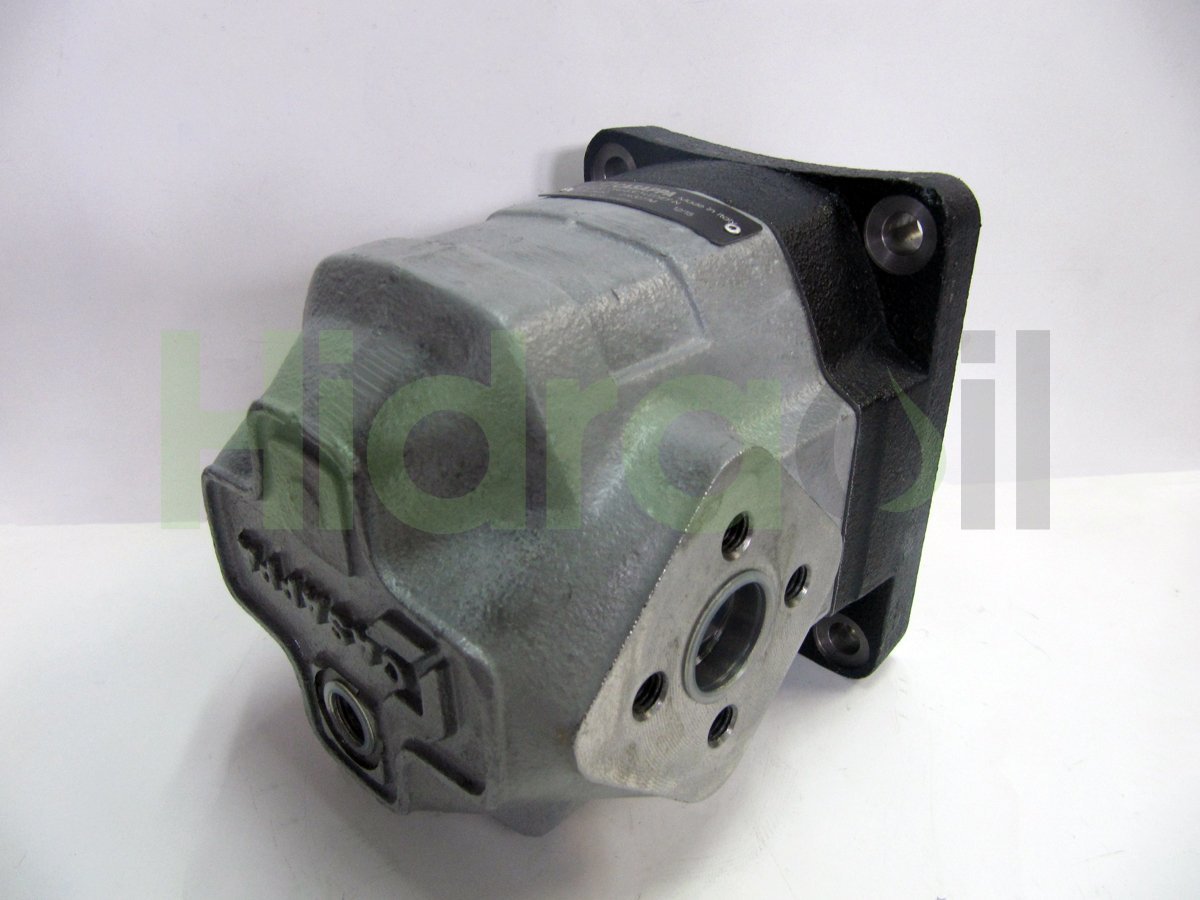

• Hydraulic external gear motor Group 3 with cast iron case.
  Displacement: 73,82 cm3/rev.
  Max working Pressure: 153 bar.
  Speed Range: From 350 up to 2500 rpm.
  Rotation: Reversible con drenaje from 3/8" GAS en la tapa posterior.
  Shaft type: Tapered 1:8 with 4 mm key width.
  Flange type: European type centering diameter 50.8 mm and distance between holes 128 x 98 mm.
  Inlet ports: Flange type port.
  Outlet ports: Flange type port.
