Product identification

• Hidraoil Part number: GFX100357
• Brand of product: Poclain
• Part number: M1 17 C2 04 00 00
• Other numbers: M117C2040000

Description

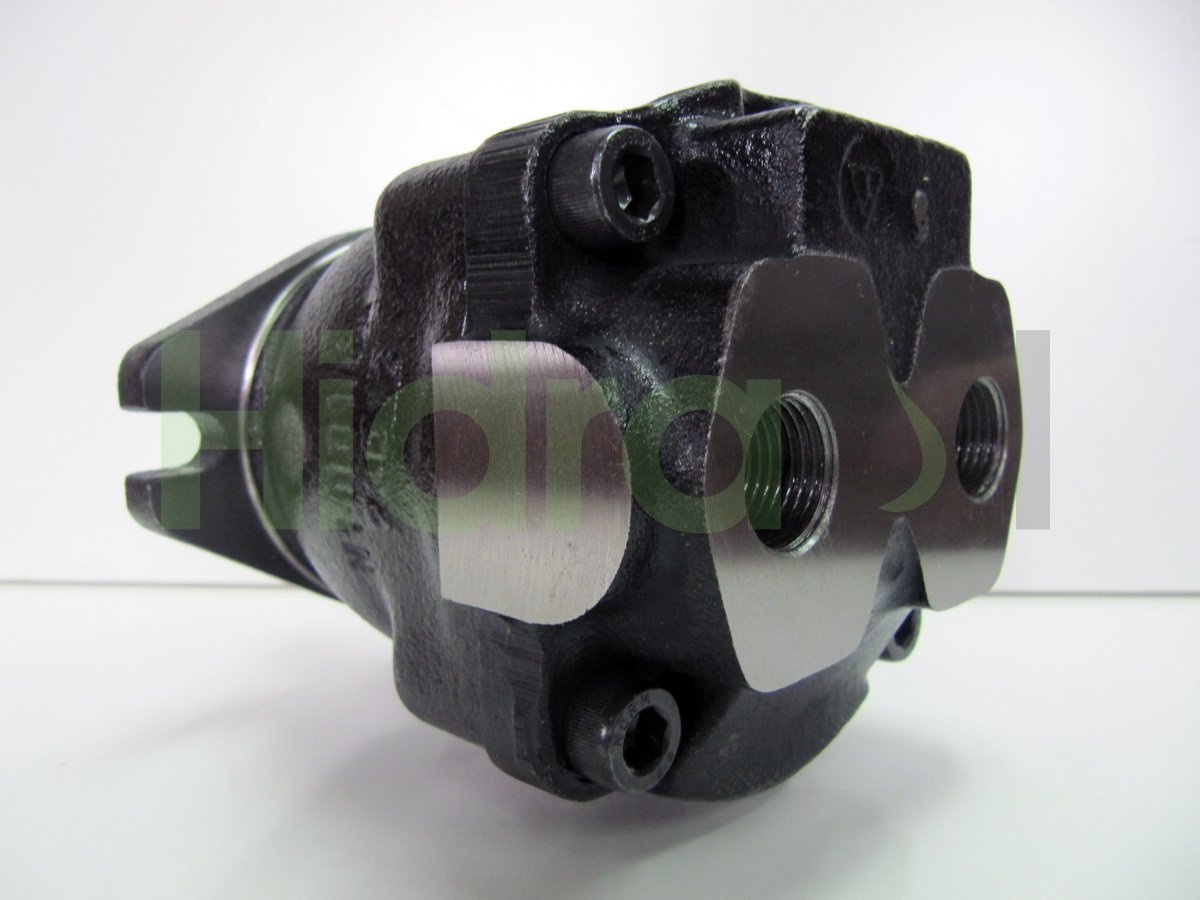

• Hydraulic Axial Piston Motor fixed displacement.
  Type: From cilindrada fija
  Displacement: 17,80 cm3/rev
  Max speed: 3600 rpm
  Min. Speed: 500 rpm
  Working pressure: 210 bar
  Max. Pressure: 320 bar
  Power entregada up to presión nominal y máxima velocidad: 22,4 kW (30,04 CV)
  Rotation: Bidireccional
  Shaft type: Parallel diameter 19 mm
