Product identification

• Hidraoil Part number: GFX101800
• Brand of product: Denison
• Part number: M4C 067 3N02 A104
• Other numbers: M4C0673N02A104 M4C 0673N02 A104

Description

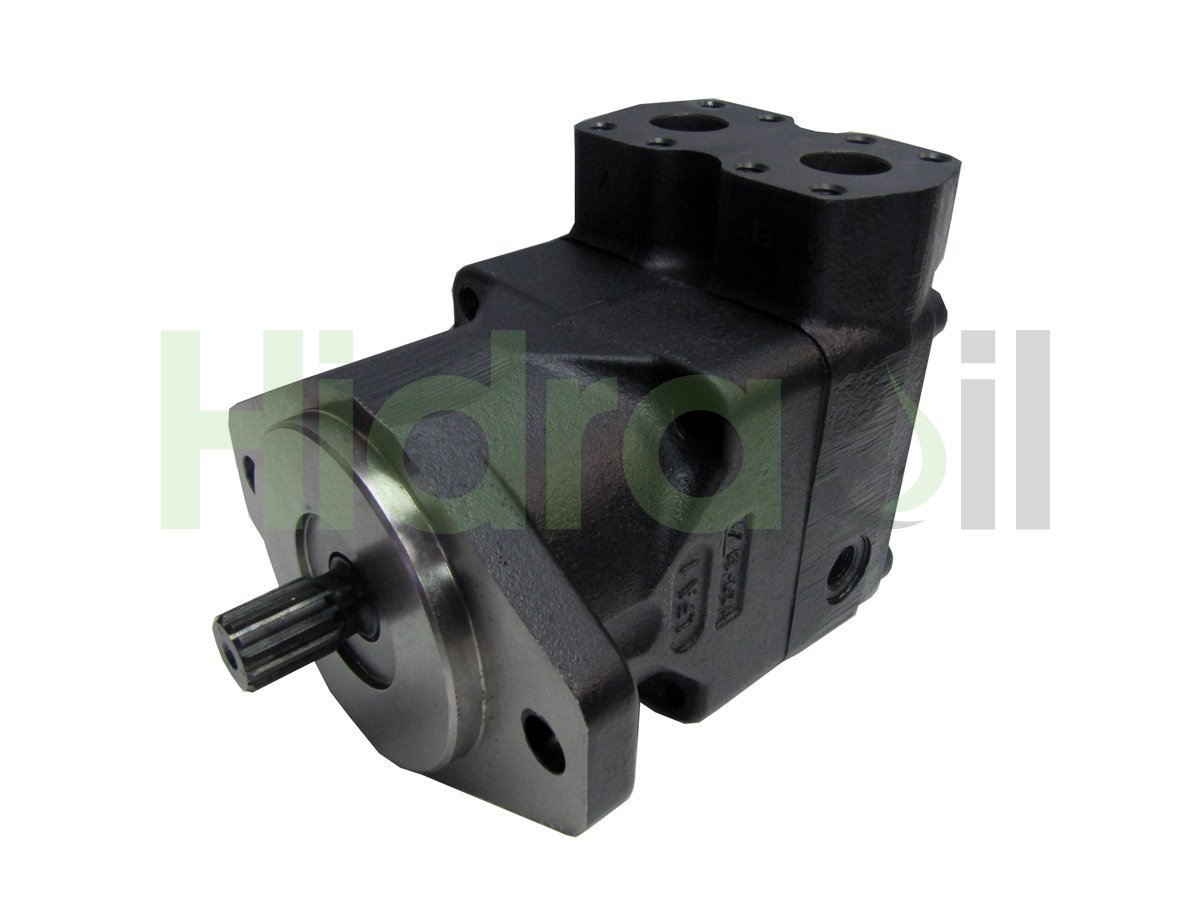

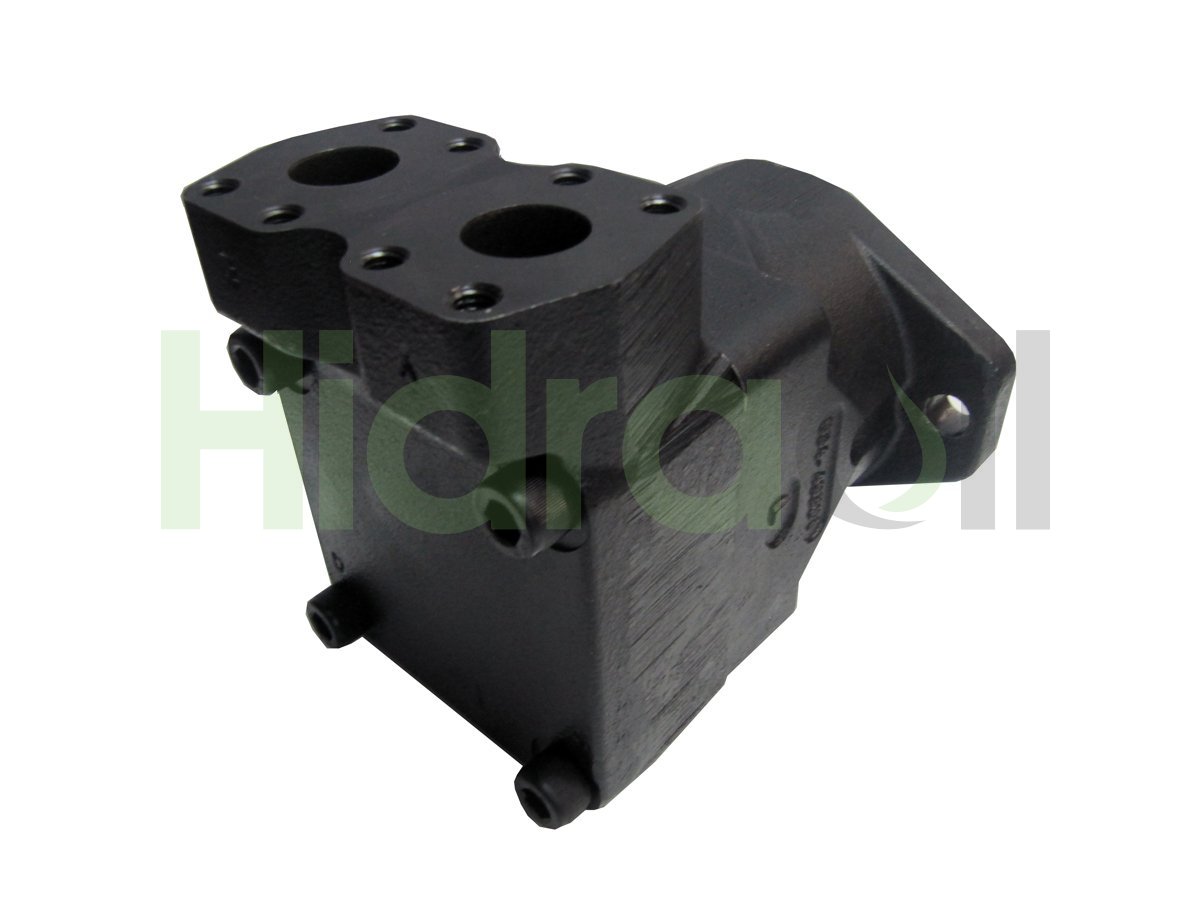

• Hydraulic Vane motor bidirectional with splined shaft.
  Displacement: 71.1 cm3/rev.
  Max differential working pressure: 175 bar.
  Max speed at max pressure: 2500 rpm.
  Specific torque: 1.13 Nm/bar.
  Par motor desarrollado up to 2000 rpm y un diferencial from presión from 175 bar: 170 Nm.
  Power desarrollada up to 2000 rpm y un diferencial from presión from 175 bar: 35.6 kW.
  Oil flow para 2000 rpm y un diferencial from presión from 175 bar: 160 liters/minute.
  Rotation: Bidirectional with external drain.
  Shaft type: Splined z13 (SAE B).
  Flange type: SAE-B type with 101.6 mm centering diameter and 2 holes 146.1 mm distance between centers.
  Ports: Puertos tipo brida SAE laterales.
