Product identification

• Hidraoil Part number: GFX78946
• Brand of product: Bucher
• Part number: QX23-005L
• Other numbers: 100020077

Description

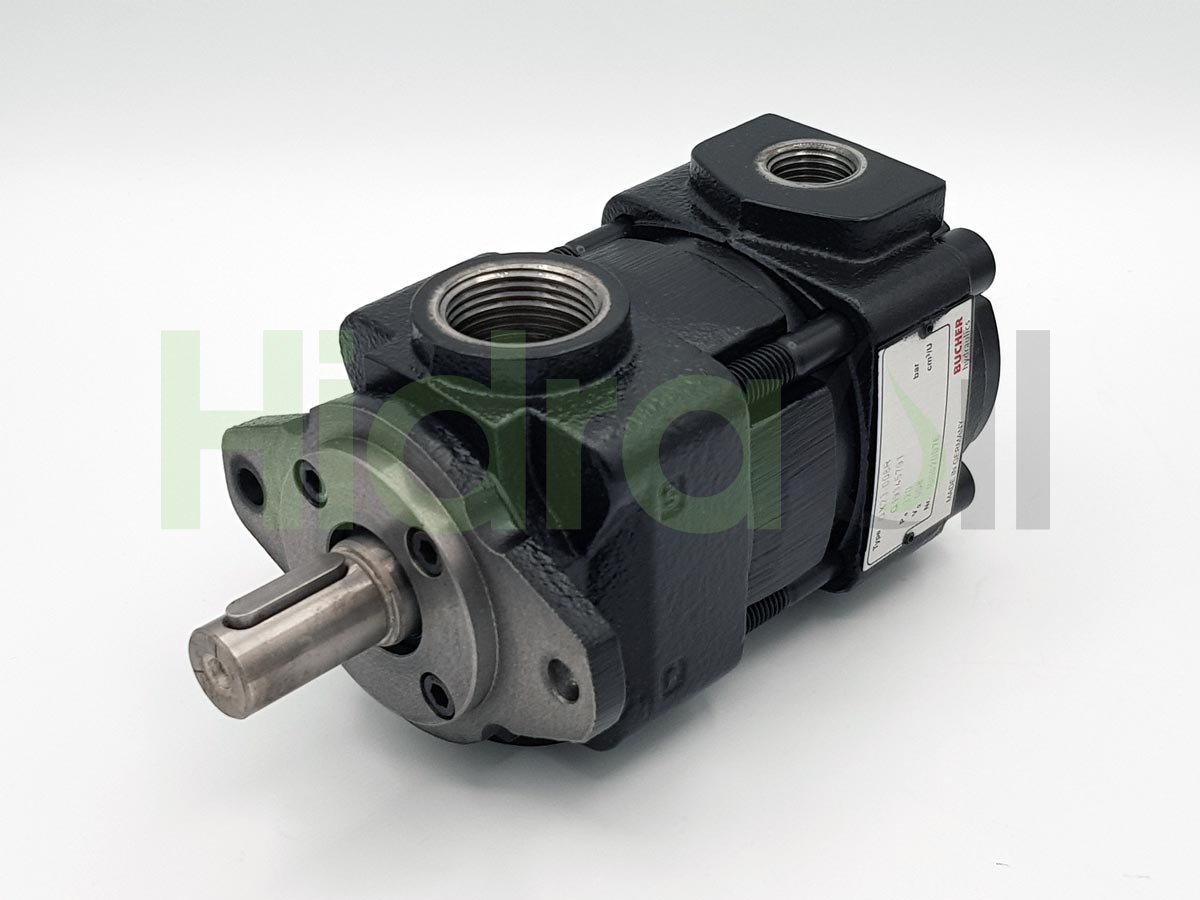

• QX pumps from Bucher have very high volumetric efficiency (up to 98%); low pressure pulsations; low noise level; extremely long service life and are ready to work with or without variable speed drivers.
  Displacement: 5.1 cm3/rev.
  Max working pressure (with mineral oil): 320 bar.
  Rotation: Counterclockwise rotation (looking at the shaft end of the pump).
  Bucher series: QX.
  Pump size: 2.
  Pressure range: 3.
  Applications: QX pumps are used for any kind of hydraulic fluids and specially for transfer fluids like: fuels; biodegradable fluids and low viscosity fluids. QX pumps are certified ATEX 2; ABS; DNV; GL; LR; NK; ... The internal gear pumps QX are suitable for applications in hazardous areas and complies with the following guidelines: ATEX directive 2014/34/EU; group II; equipment category 3; atmosphere G; temperature class T3 and T4.
