Product identification

• Hidraoil Part number: GFX101135
• Brand of product: Denison
• Part number: T6C-B10-1L00-B1
• Other numbers: T6C-010-1L00-B1 T6CB101L00B1 T6C0101L00B1 T6C0101L01B1 T6C0101L02B1 T6C0101L03B1

Description

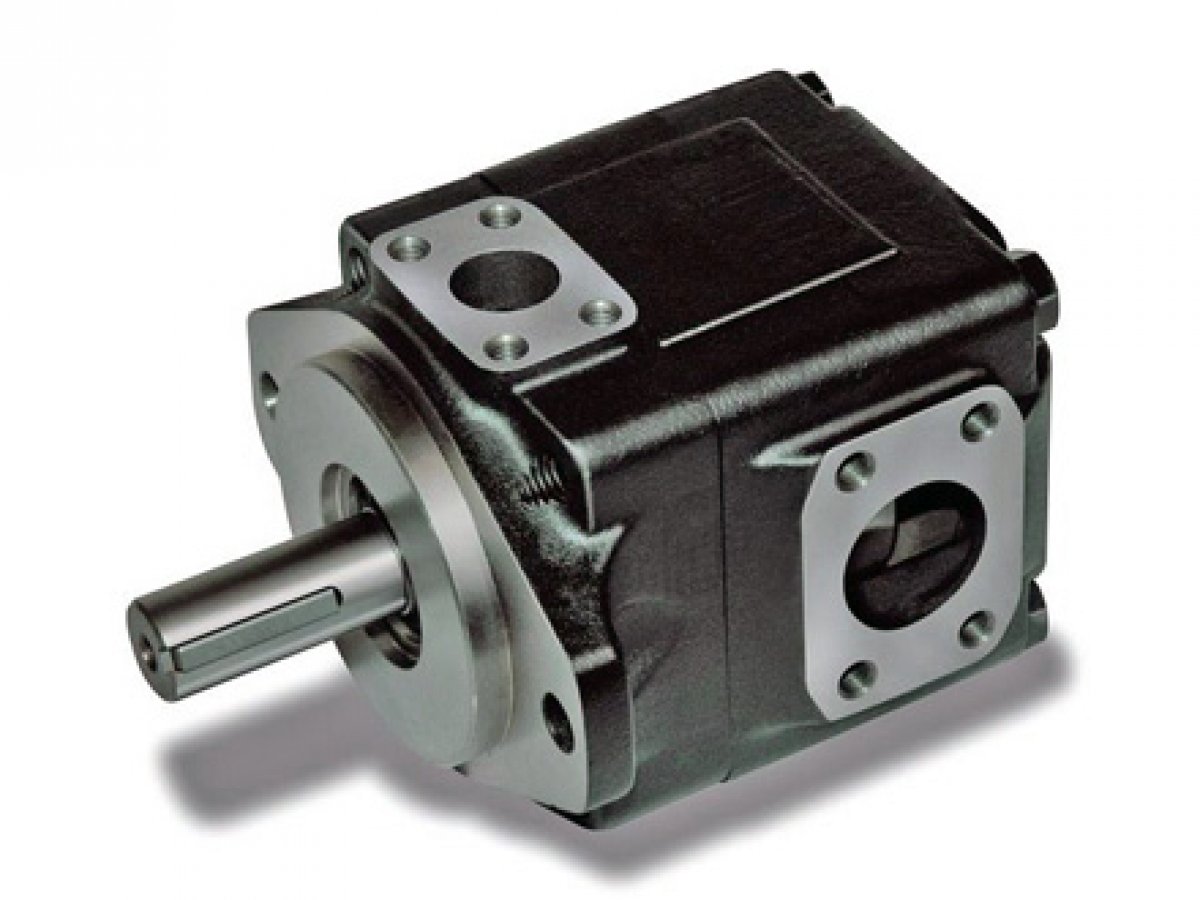

• Hydraulic double Vane pump.
  Type: Fixed displacement.
  Displacement: 34.1 cm3/rev.
  Oil Flow: 10 gpm.
  Flow @ 1500 rpm y 0 bar: 51.1 liters/minute.
  Max working pressure: 240 bar.
  Min. Speed: 600 rpm.
  Max speed: 2800 rpm.
  Flange type: Brida con centraje from 101.6 mm y con 2 taladros from fijación separados 146 mm.
  Shaft type: Straight shaft 22.2 mm Diameter (SAE B type).
  Rotation: Counterclockwise rotation.
  Outlet port position: Depending on part number:
  00: Opposide side to inlet port.
  01: Same side as inlet port.
  02: 90º side (CW) to inlet port.
  03: 90º side (CCW) to inlet port.
