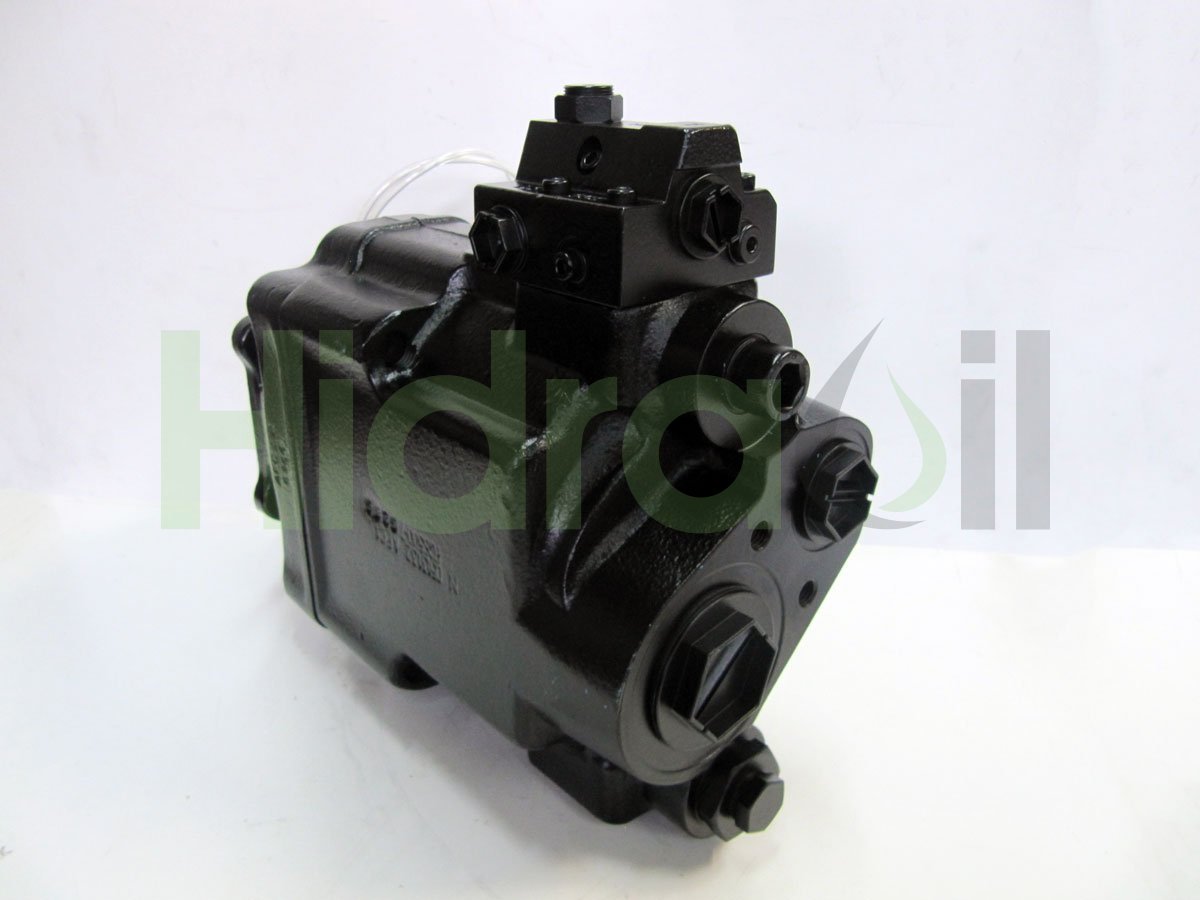

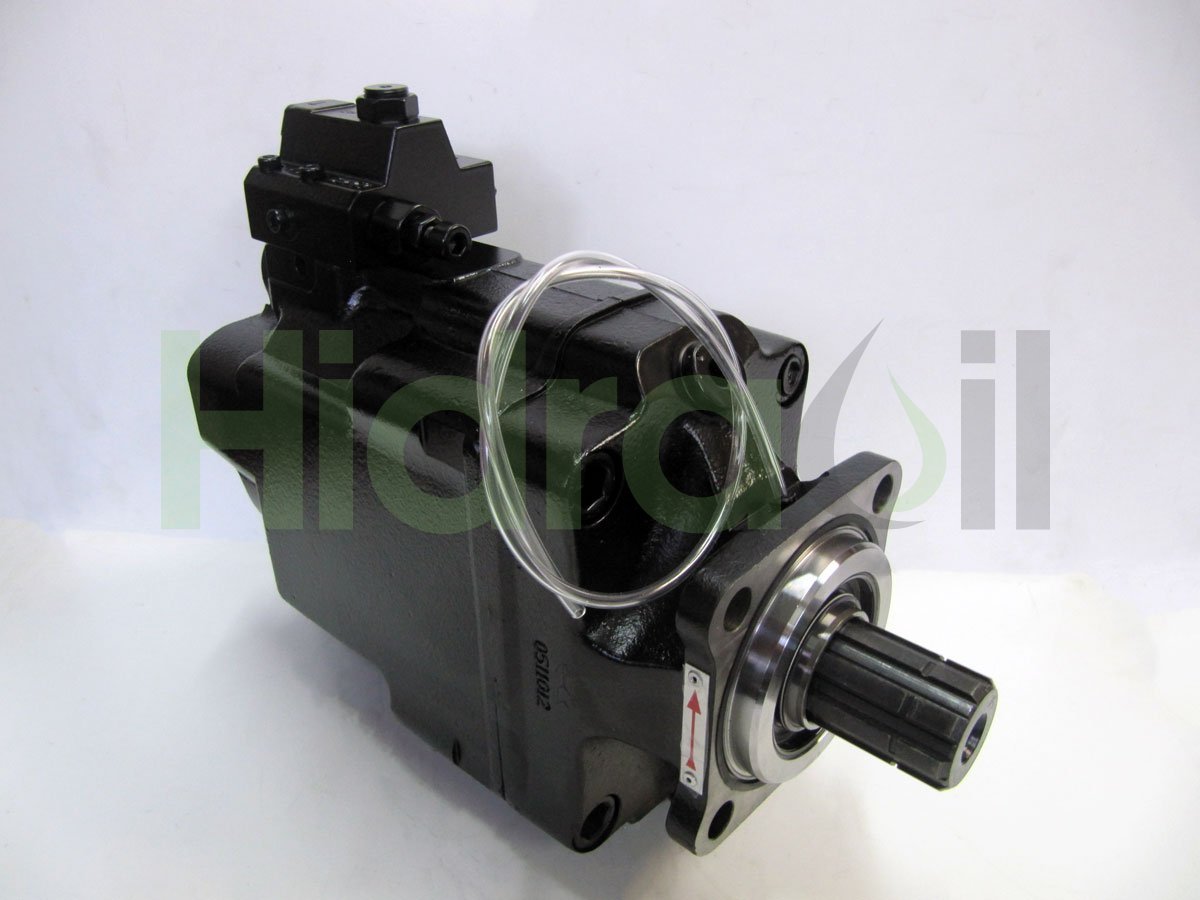

Product identification

• Hidraoil Part number: GFX101515
• Brand of product: Hydro Leduc
• Part number: TXV92 0512520
• Other numbers: TXV 92 TXV920512520 load sensing TXV92SH TXV92 SH
• Approximate weight (kg): 26,8

Description

• Hydraulic axial piston variable displacement.
  Type: Variable displacement for open circuit con control from cilindrada LS (sensor from carga).
  Max displacement: 92 cm3/rev.
  Flow @ 1500 rpm: 138 liters/minute.
  Max working pressure: 380 bar.
  Max Pressure intermittent: 400 bar (max 5%).
  Velocidad from giro máxima: 1900 rpm.
  Rotation: Clockwise rotation.
  Control Type: Control from presión y caudal, sistema LS (Load Sensing).
  Shaft type: Splined 8 tooth.
  Flange type: Cuadrada con centraje from diámetro 80 mm y distancia entre centros from agujeros en cuadrado from 80 mm from lado.
