Product identification

• Hidraoil Part number: GFX101089
• Brand of product: Hydro Leduc
• Part number: X80 0513220
• Approximate weight (kg): 15,7

Description

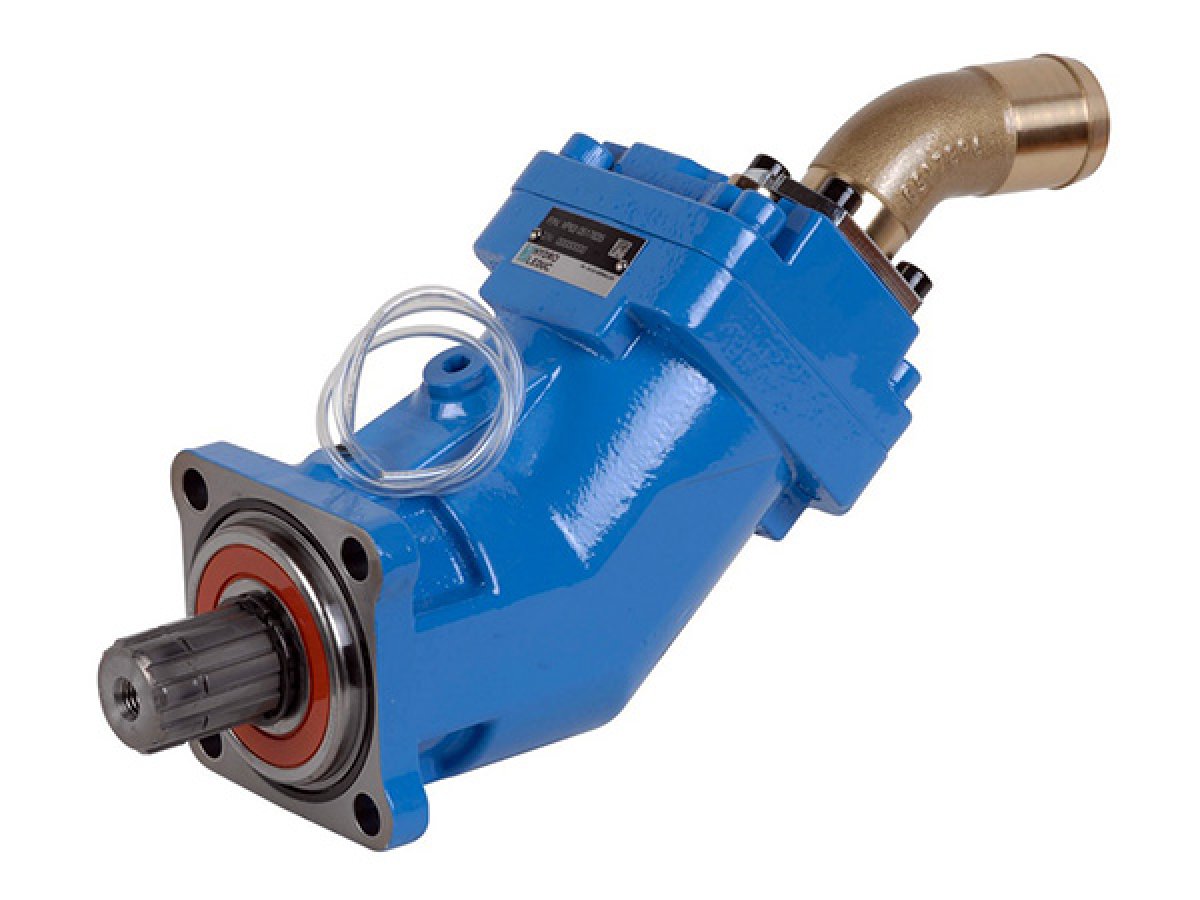

• Hydraulic bent-axis (banana-type) Piston pump for mobile applications with high demands.
  Type: Fixed displacement for open circuit.
  Displacement: 80.4 cm3/rev.
  Rotation: The pump is supplied with clockwise rotation but can be easily changed to counterclockwise.
  Flange type: DIN flange 4 holes (ISO 7653-D).
  Shaft type: Splined z8 with external diameter 34.9 mm (DIN 5462 / ISO 14 type B8x32x36).
  Max working Pressure: 350 bar.
  Max speed: 2000 rpm.
  Flow @ 500 rpm: 40.2 liters/minute.
  Flow @ 1000 rpm: 80.4 liters/minute.
  Flow @ 1500 rpm: 120.6 liters/minute.
